Product Parameters:

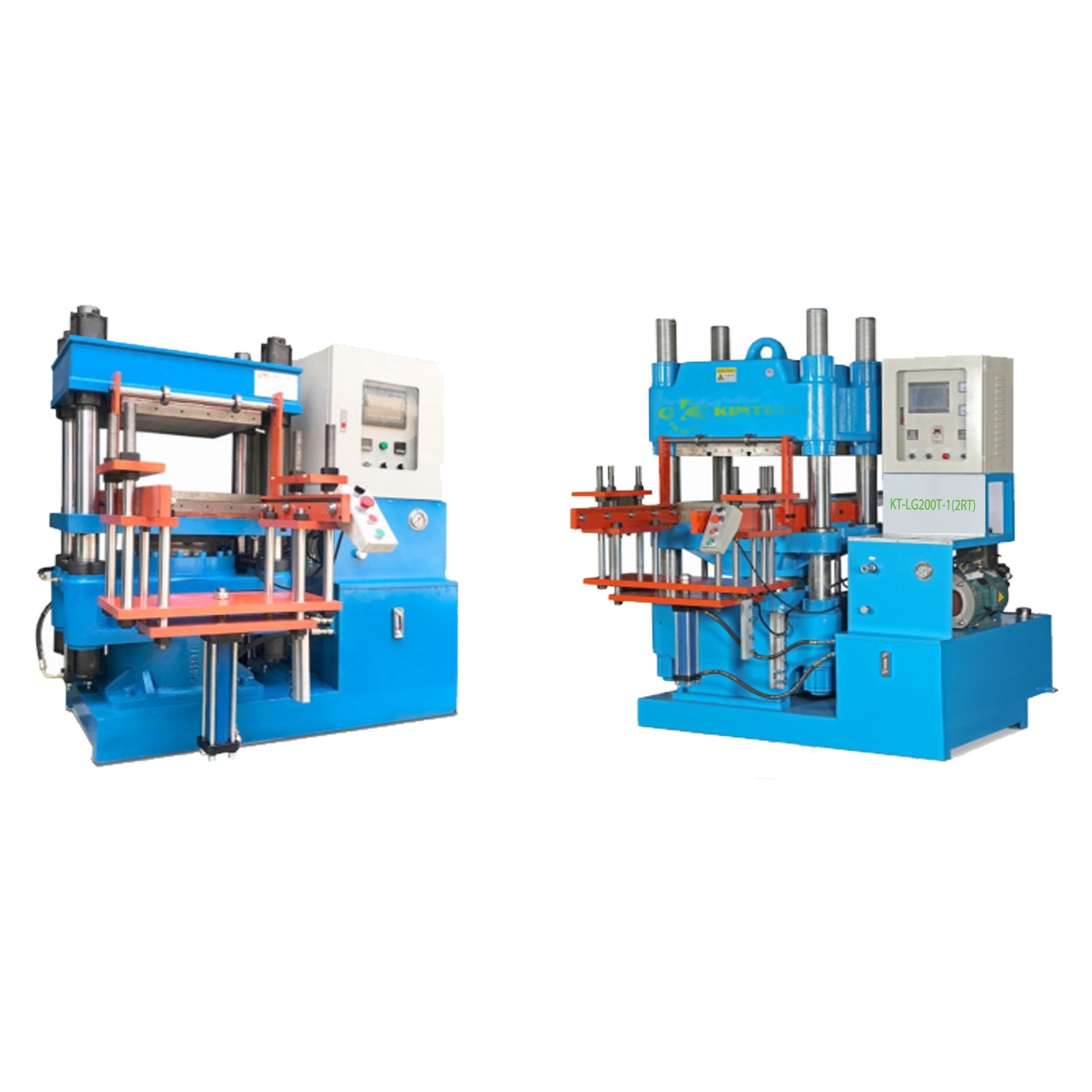

1.Model: KT-LG250T

2.Hot plate specifications: 600x600mm

3. Hot plate spacing: 250mm-300mm

4. Mold opening method: automatic mold release (2RT)

5. Main column diameter: Φ400mm

6. Working level: upper and lower levels

7. Maximum pressure: 250 tons

8. Machine structure: four-column/single-head model

9. Overall machine size: 1900*1650*2000mm

10. Temperature range: normal temperature -350℃

11. Heating method: imported electric heating tube

12. System pressure: 18MPa

13. Clamping stroke: 250mm

14. Motor power: 7.5KW

15.Total power: 23KW

16. Power supply specification: 380V/50HZ

17. Complete machine weight: =4000Kg

Product Parameters:

1.Model: KT-LG200T-1(2RT)

2.Hot plate specifications: 560x560mm

3. Hot plate spacing: 250mm-300mm

4. Mold opening method: automatic mold release (2RT)

5. Main column diameter: Φ350mm

6. Working level: upper and lower levels

7. Maximum pressure: 200tons

8. Machine structure: four-column/single-head model

9. Overall machine size: 1800*1600*1950mm

10. Temperature range: normal temperature -350℃

11. Heating method: imported electric heating tube

12. System pressure: 18MPa

13. Clamping stroke: 250mm

14. Motor power: 7.5KW

15.Total power: 22KW

16. Power supply specification: 380V/50HZ

17. Complete machine weight: 3000Kg
