Pallet Trucks

Serice brake type : Electromagnetic
Drive motor rating S2 60 min : 0.75kw
Lift motor rating at S3 15% : 0.84kw

Product Details

Product Tags

Product Parameters

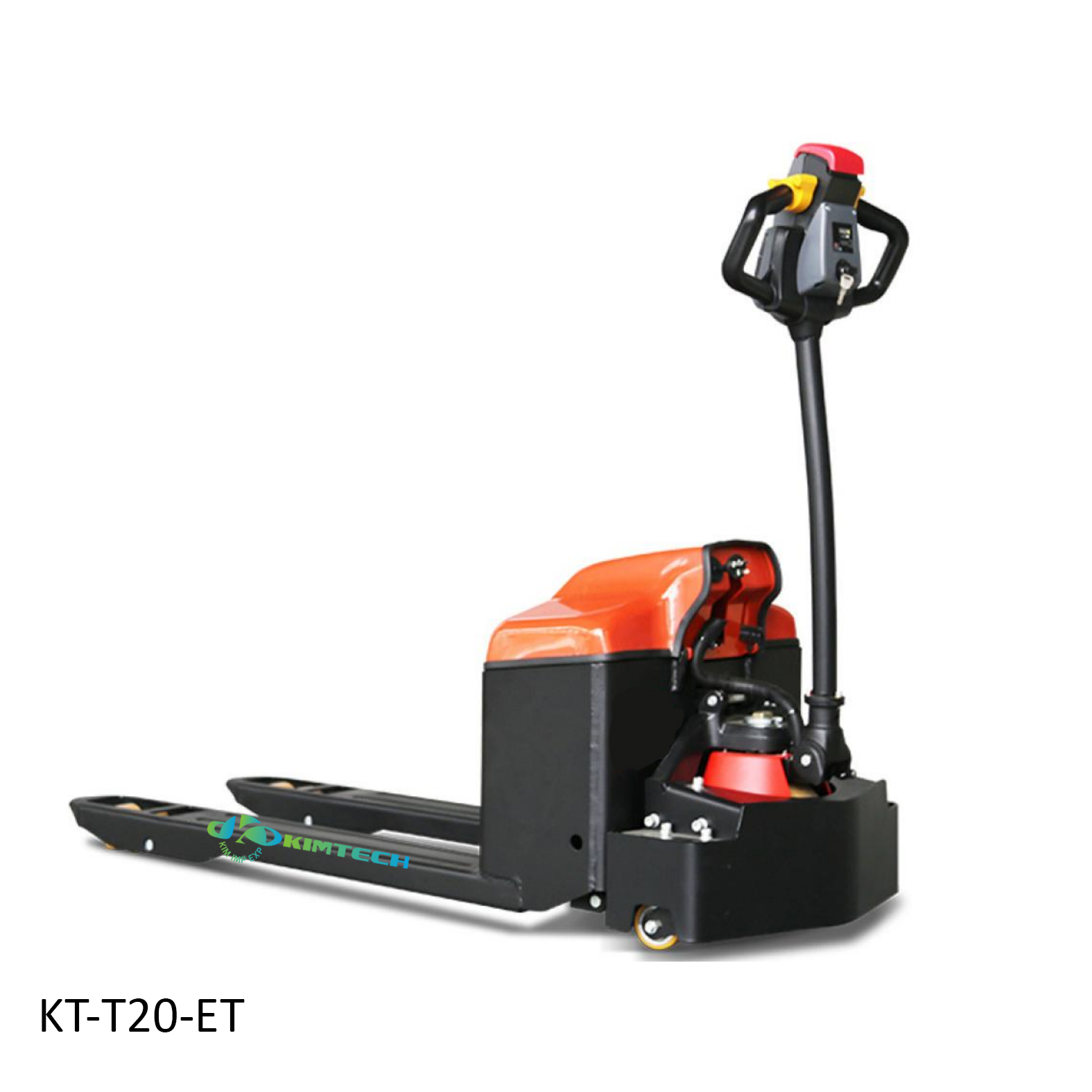

1. MODEL KT-T20-ET

2. Drive unit Electrics

3. Operator type pedestrian

4. rated capacity 2000kg

5. Load center distance : 600cm

6. Load distance : 873/976

7. Wheelbase : 1247/1350mm

8. Service weight (include battery) : 220kg

9. Axle loading, laden driving side/loading side : 740/1480kg

10. Axle loading, unladen driving side/loading sideChassis : 180/40kg

11. Tyre type driving wheels/loading wheels : PU/PU

12. Tyre size, drvng wheels (diameterxwidth ) : Φ250*740

13. Tyre size, loading wheels (diameterxwidth) : 4xΦ78*60(2xΦ74*88)

14. Tyre size, caster wheels (diameterxwidth ) : Φ74*48

15. Wheels, number drivng, caster/loading (x=drive wheels) : 1x2/4(1x2/2)

16. Track width, front,driving side : 435mm

17. Track width,rear,loading side : 410(535)mm

18. Lift height : 140mm

19. Height drawbar in drivng positlon min./max. : 750/1170mm

20. Lowered height : 80mm

21. Overall length : 1685mm

22. Length to face of forks : 535mm

23. Overall width : 560mm

24. Fork dimensions : 50/150/1150mm

25. Distance between fork-ams : 560mm

26. Ground clearance. center of wheelbase : 30mm

27. Aisle width for pallets 1000 x 1200 crossways : 1792mm

28. Aisle width for pallets 800 x 1200 lengthways : 1992mm

29. Tuming radius : 1465mm

30. Travel speed, ladenf unladen : 4-5.5km/h

31. Lifting speed, ladenf unladen : 0.024-0.038m/s

32. Lowering speed, laden' unladen : 0.034-0.025m/s

33. Max. gradeability, ladenunladen : 8/16

34. Serice brake type : Electromagnetic

35. Drive motor rating S2 60 min : 0.75kw

36. Lift motor rating at S3 15% : 0.84kw

37. The maximum allowed size battery : 255*170*200mm

38. Battery voltage/nominal capacity K20 : 12*4/30 V/Ah

39. Battery weight : 9.5*4

40. Type of drive control : DC

41. eering type : Mechanical

42. Sound pressure level at the driver's ear : 74dB(A)
