USE

The machine is suitable for splitting various soft and hard material sunder width of 400mm and thickness of 10mm in industries such as leather,luggage,footwear, clothing, rubber, etc. to the required thickness,getting higher product quality,finer workmanship,and stronger competitiveness.

Feature:

1.Splitting thickness displayed by LCD,the infinitely variable adjustment of feeding, accurate number counting function.

2.With automatic feed registration device, no need to adjust cutting tool.

Adjust the clearance of pressure pad and cutting tool automatically to make the splitting precision much higher.

Automatic pause system when leather material entangles in and automatic detection system of electronic phase.

3.Freestanding set of dust absorbing device.

Product Parameters：

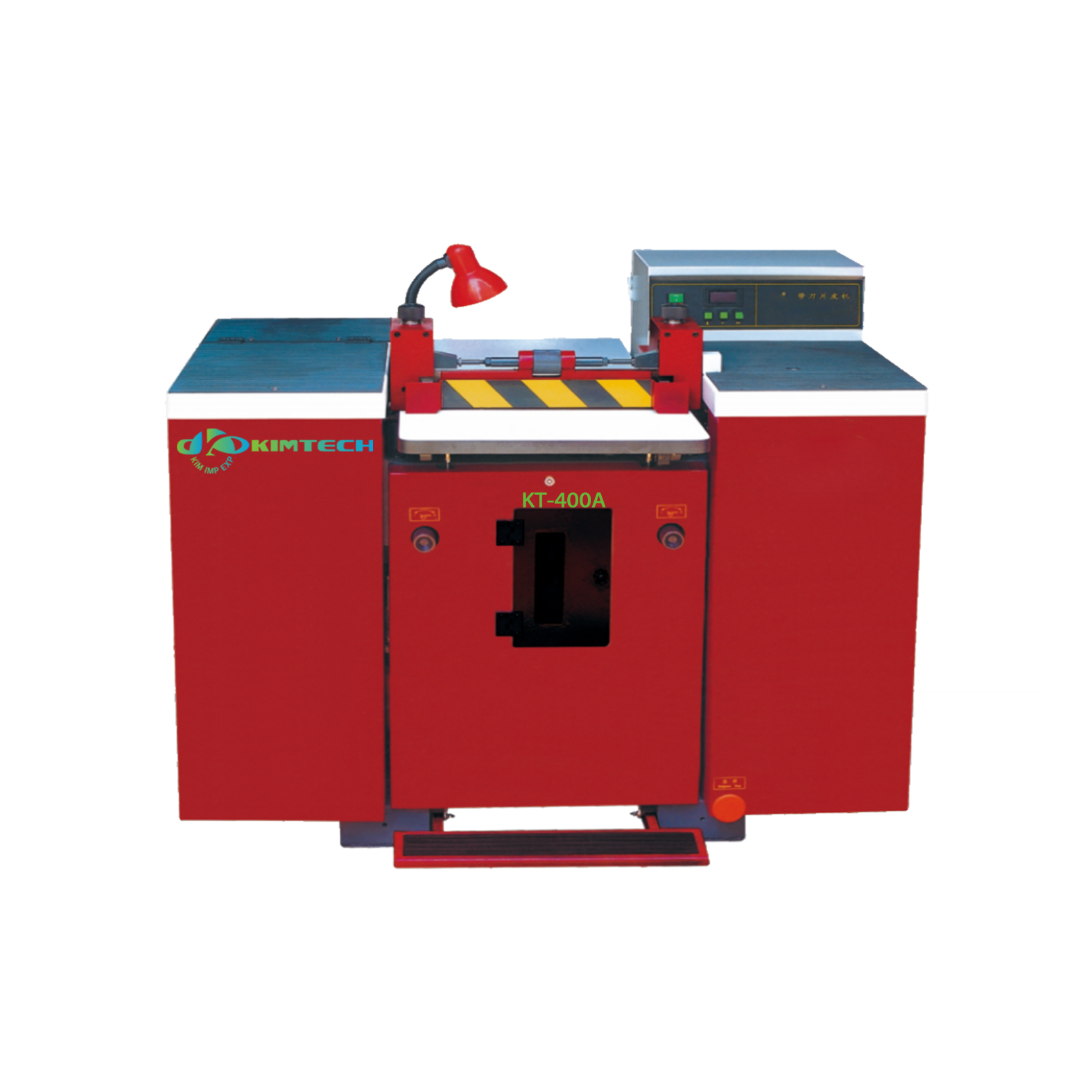

1.Model:KT-400A

2.Max width of split:400mm

3.Max thickness of split:10mm

4.Min thickness of split:0.15mmwith top bar

0.5mm with top feed roller

5.Specification of band knife:2830x50x0.6mm

6.Power:3.5kW

7.Package size:1430x1130x1275mm

8.Gross weight/Net weight:650kg/560kg
