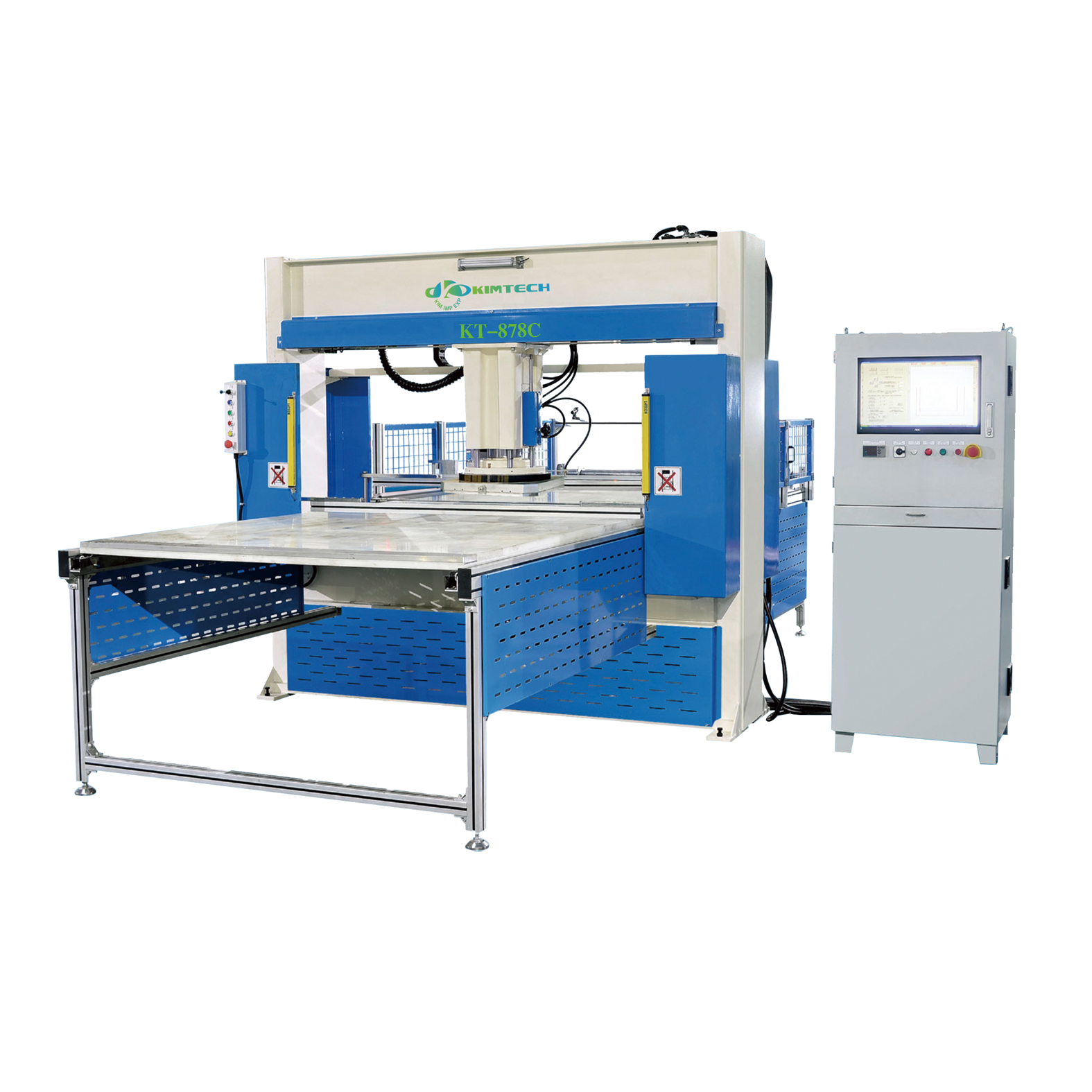

Full-Automatic Computer Numerical Control Gantry Type Push Plate Feeding Cutting Machine KT-878C

Dimensions :   5000x2550x2350mm
Motor Power  :  4HP/3KW
Weight :   3400kg

Product Details

Product Tags

Applications And Features:

1. This Machine is applicable for the die cutting operation by the molding cutting die on various kinds of non-metallic materials, such as flaky materials,blister,expandable polyethylene packaging,rubber,printing and other industries.

2.Computer typesetting system:Automatically moves for row die cutting,Set the Angle and location for each cutting of head, set the cutting speed and depth,Hardware connection whether normal,manual simulation machine running status.

3.The host machine adopts the four-column guiding,double crank balance and hydraulic drive to guarantee the cutting die speed and precision of the machine.All the sliding connection parts adopt the central oil supply automatic lubricating device, the wear to a minimum.

4.The input and output of material is conveyed on the conveying belt, and the die cutting operation of materials is also done automatically on the conveying belt.

5.Machine cutting area is equipped with safety light curtain on feeding and discharging area to ensured operator safety.


Product Parameters:

1.Dimensions:    5000x2550x2350mm
2.Computer Box Dimensions :   710x610x1820mm
3.Cutting Area :   1700x1600mm
4.Arm Width :   500x500mm
5.M.C.F:    30T
6.Stroke :   5~130mm
7.Motor Power :   4HP/3KW
8.Servo Motor:   2KW
9.Weight :   3400kg
