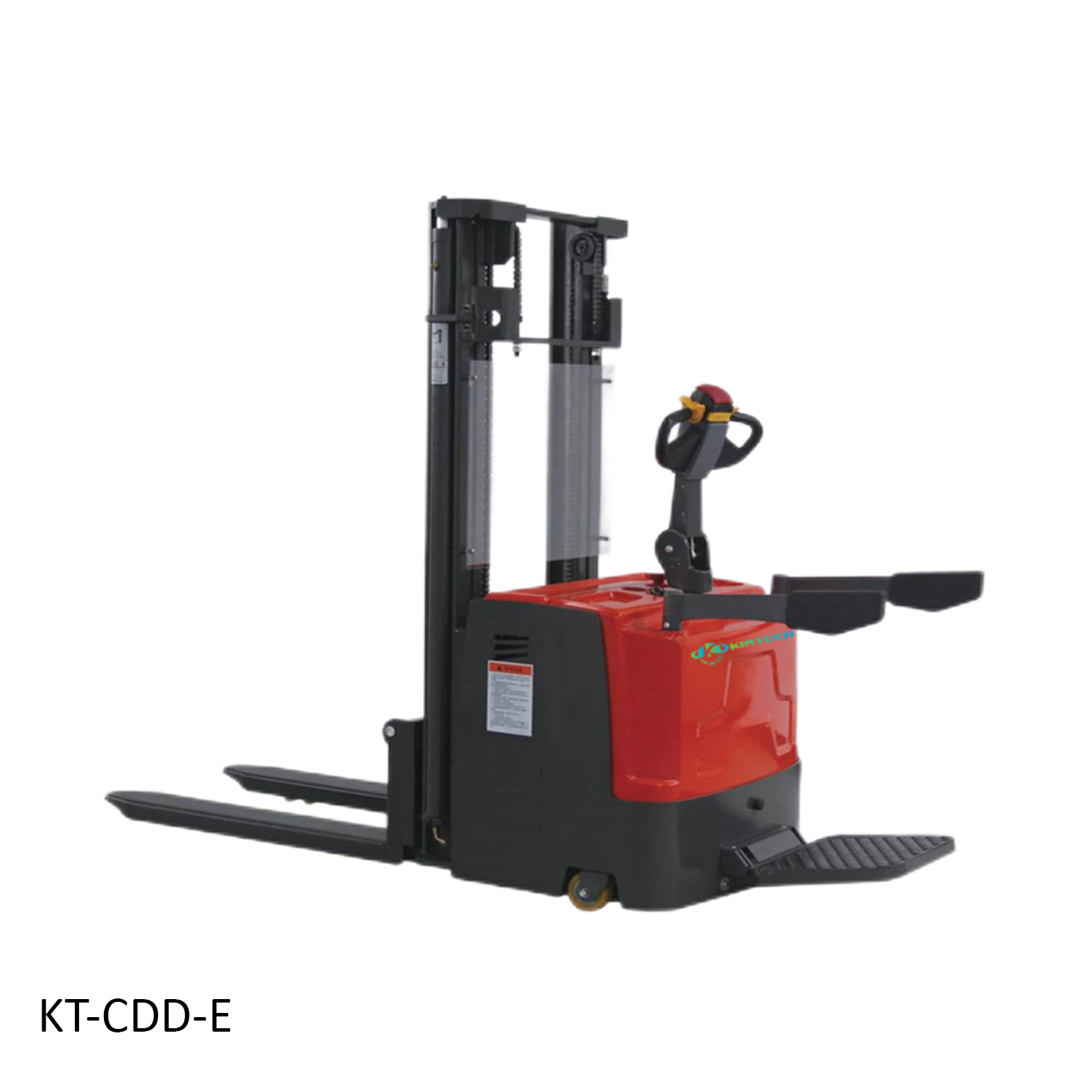

Electric Stackers KT-CDD-E

Rated output : 2.2/3.0kw
Voltag : 24V
Capacity : 210AH
Weight : 195kg

Product Details

Product Tags

Product Parameters

1. MODEL KT-CDD-E

2. Maximum load capacity : 1500/2000kg

3. with load center at : 600mm

4. Maximum lifting height : 1600/2000/2500/3000/3500/4000/4000S/4500Smm

5. Travel speed(without load) : 5 kw/h

6. Travel speed (with load) : 4.5 kw/h

7. Lifting speed (without load) : 120 mm/s

8. Lifting speed (with load) : 100 mm/s

9. Lowered speed(without load) : 100 mm/s

10. Lowered speed(with load) : 100 mm/s

11. Ascend slope ability(without load ) : 8%

12. Ascend slope ability(with load ) : 5%

13. Weight (without battery) : 1150kg

14. Overall length of frame : 2010/2060mm 2050/2100mm

15. Overall width of frame : 850mm

16. Mast lowered height : 2010/1485/1735/1985/2235/2485mm/1820/1990mm

17. Max height : 2035/2435/2935/3435/3935/4435/4935mm

18. Wheelbase : 1380/1410mm

19. Fork length : 1100/1150mm

20. Fork outside width : 560/680mm

21. Fork inside width : 220/340mm

22. Fork thickness : 65mm

23. Fork lowered height : 90mm

24. Min frounf height : 30mm

25. Minimum turning radius(with platform) :  2090mm

26. Minimum turning radius(without platform) :1675/1720mm

27. Minimum intersecting aisle :  2325/2370mm

28. Front wheel : 80*70mm

29. Drive wheel : 250*75mm

30. Caster wheel : 115*55mm

31. Wheel material : polyurethane

32. Drive motor type : AC series motor

33. Rated output : 1.5kw

34. Hoist motor type : DC series motor

35. Rated output : 2.2/3.0kw

36. Voltag : 24V

37. Capacity : 210AH

38. Weight : 195kg
