Product Parameters：

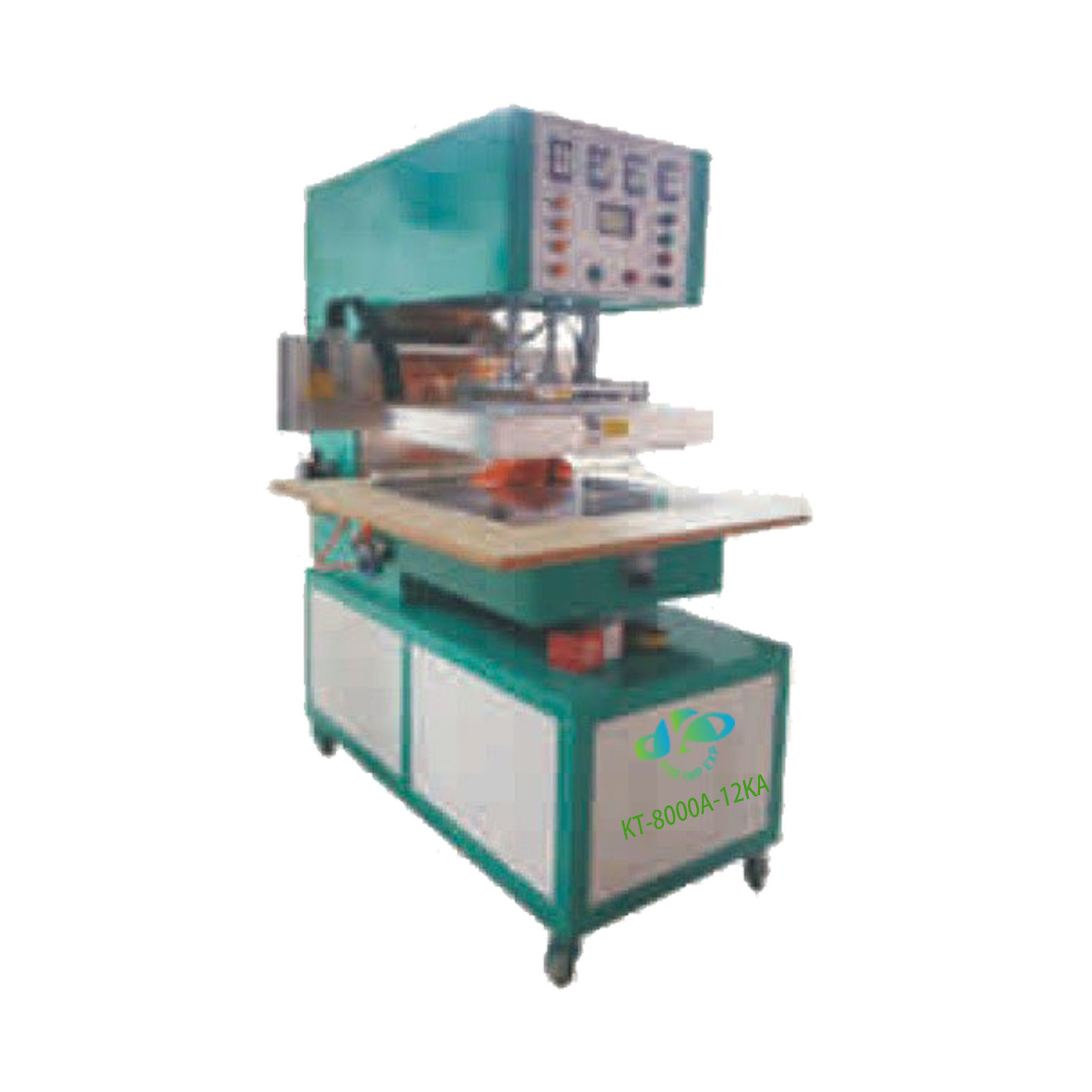

1.MODEL: KT-8000A

2.POWER: 8000W

3.POWER SUPPLY : 380V

4.ELETRONIC POWER: 12KVA

5.RECTIFIER: SILICON DIODE

6.VIBRATIONAL TUBE: 7T69RB

7.MAXPRESSUERE:450kg

8.MAX GAP OF ELECTRODES:250mm

9.SIZE OF ACCTIVE HORN: 200mm

10.SIZE OF PLAT:600*800mm

11.SCALE OF TEPRETURE: 30～300℃Adjustable

12.TIME CHANGE: 0～10SAdjustable

13. TYPE OF OPERATION :The whole pneumatic controlling

14.SIZE OF SHAPE: 1000*750*1920mm

15.NET WEIGHT: 500kg

Product Parameters：

1.MODEL: KT-12KA

2.POWER:12000W

3.POWER SUPPLY : 380V

4.ELETRONIC POWER:16KVA

5.RECTIFIER: SILICON DIODE

6.VIBRATIONAL TUBE:3130RB

7.MAXPRESSUERE:500kg

8.MAX GAP OF ELECTRODES: 250mm

9.SIZE OF ACCTIVE HORN: 200mm

10.SIZE OF PLAT:700*900mm

11.SCALE OF TEPRETURE: 30～300℃Adjustable

12.TIME CHANGE:0～10SAdjustable

13.TYPE OF OPERATION :The whole pneumatic controlling

14. SIZE OF SHAPE: 1000*750*1920mm

15. NET WEIGHT: 800kg



Features:to keep the original look of the rawleathers for flat joint.

Purpose:applicable to mounting and jointingof all kinds of thick adhesive plasters.
