Product Parameters：

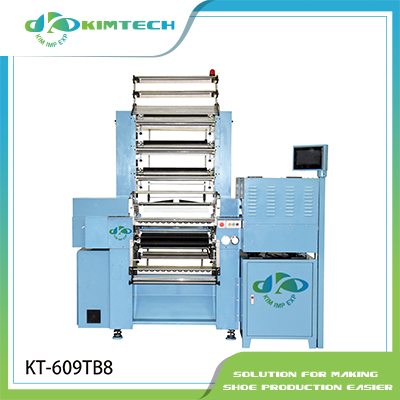

1. Model ：KT-609TB8-12-16

2. Tube bars :８／１２／１６

3. 2 sets weft feeders :1

4. Inverter :1

5. Collecting device :1

6. Speed :0-1200rpm

7. Power :1.5kw

8. N.W.ofmachine :950kg

9. Gauge selection ：15/20/24

10. Electronic weft pick ：1

11. Servo control system ：1

12. Widening device ：1

13. Voltage ：380v

14. Dimension ：2000x2200x2350mm

Features:

Product Usage: Applicable to produce different elastic ornon-elastic tape, such as bra lace tape, medical bandages.garment tapes, and so on.2.Product Features:

1. Stable structure of the equipment, high efficiency, easilyoperate and convenient to maintain.,

2. All precised accessories are produced with high qualitymaterial, to ensure long durability and product quality;

3. Machine layoutis convenient for operator to operate allequipment.

4. The main shaft, weft feeding, binder thread feeding.Density are controlled by electronic motor, adjust the dataas required, easily operate.

5. The needle bed is designed and produced precisedly,precised location, less noise, and long durability.

6. Cone creel and beam stand can be customized
