USE

The machine is suitable for splitting various soft and hard material sunder width of 300mm and thickness of 10mm in industries such as leather,luggage,footwear,clothing,rubber,etc.to the required thickness,getting higher product quality, finer workmanship, and stronger competitiveness.

Feature:

1.Splitting thickness displayed by plc LCD,the infinitely variable adjustment of feeding,accurate number counting function.

2.With automatic feed registration device,no need to adjust cutting tool.

3With function of dropping out when it is splitting.

4.Adjust the clearance of pressure pad and cutting tool automatically to make the splitting precision much higher.

5.Freestanding set of dust absorbing device,automatic detection system of electronic phase.

Product Parameters：

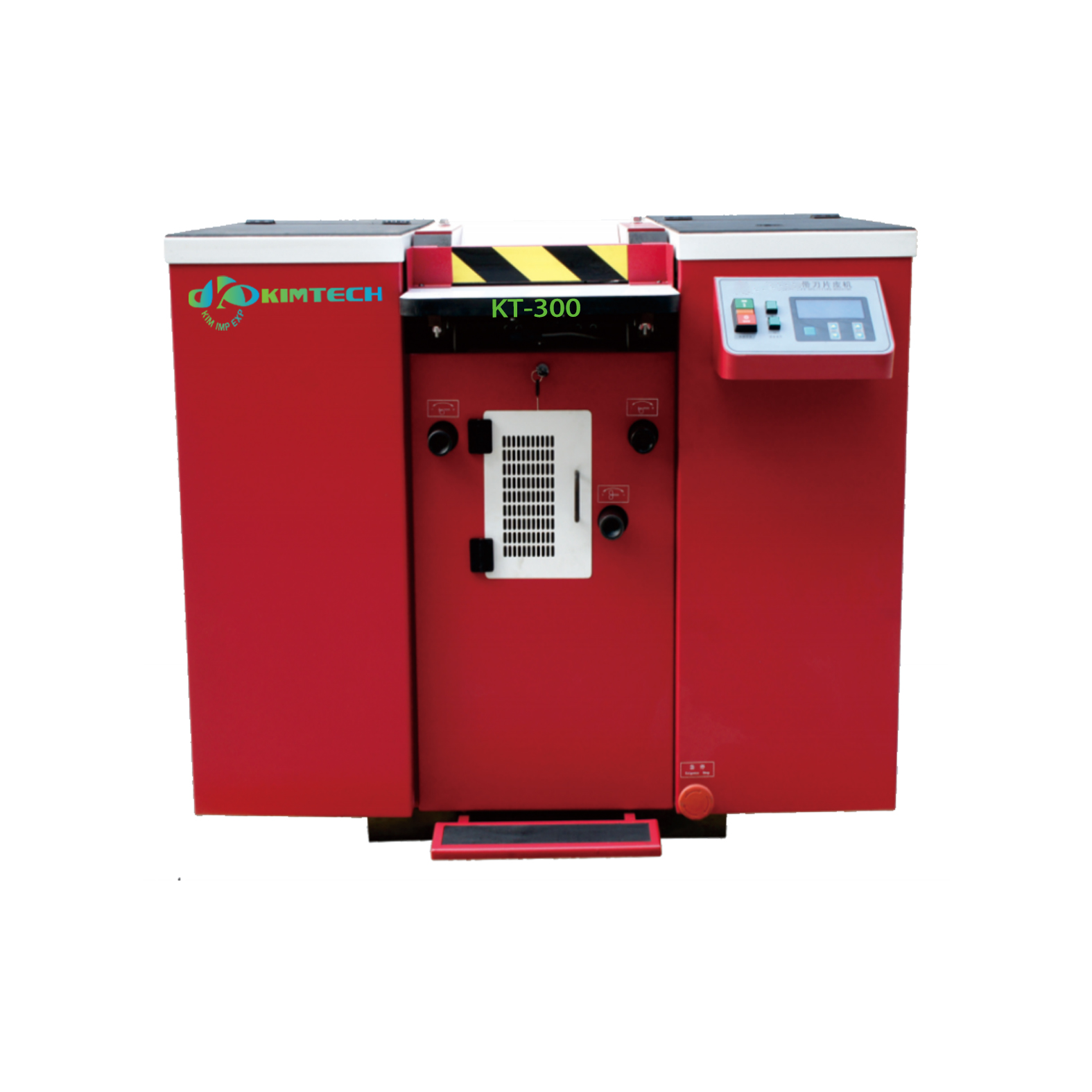

1.Mode:KT-300

2.Max width of split:300mm

3.Min thickness of cutting:Adopt two feeding rollers 0.6-8mm

:Adopt feeding bar 0.2-8mm

4.Specification of band knife:2630x50x0.6mm

5.Power:3.5kW

6.Package size:1330x1130x1200mm

7.Gross weight/Net weight:580kg/500kg
