Product Parameters：

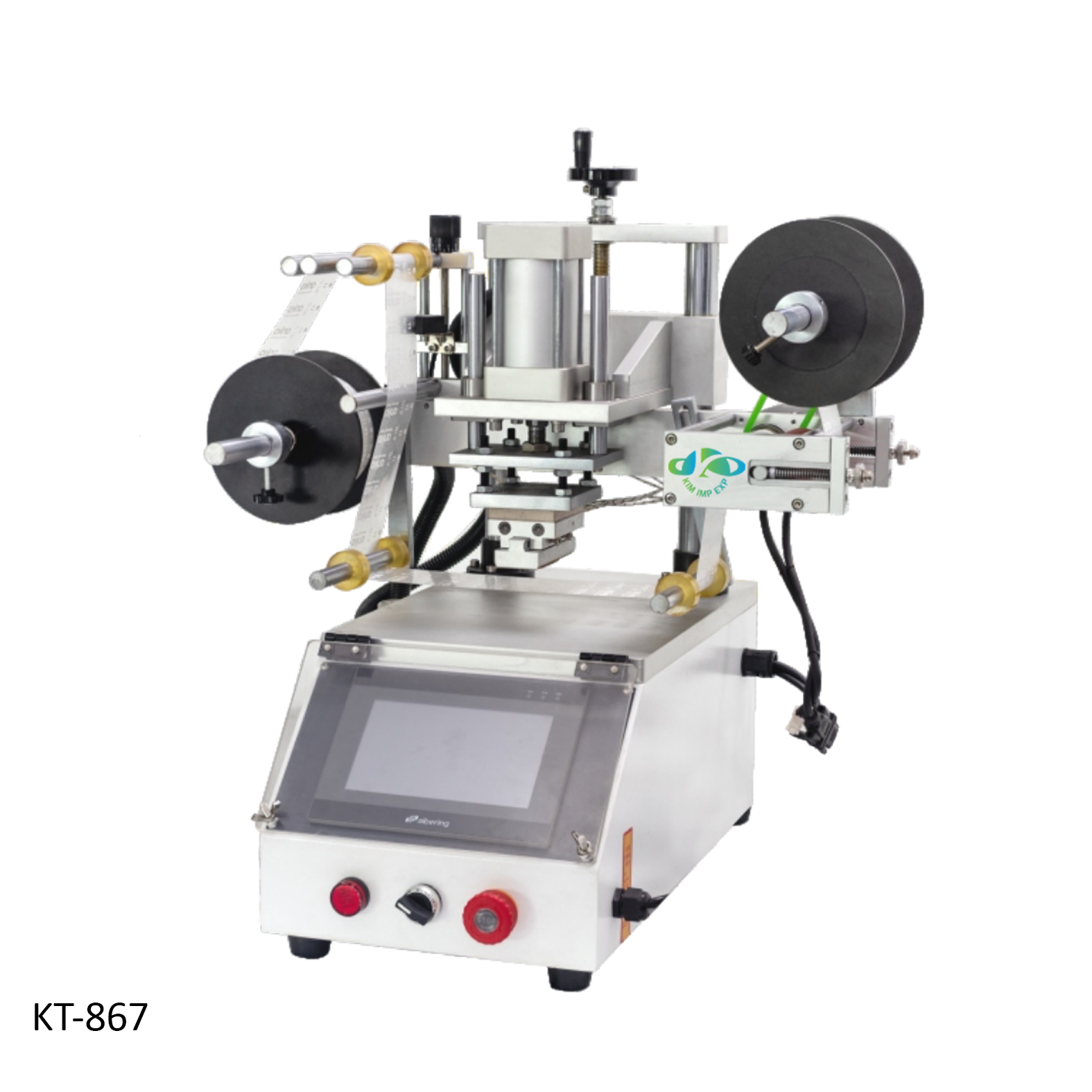

1. MODEL ：KT-867

2. Dimension(LxWxH) :630x560x700mm

3. Power :1HP

4. Voltage : AC220V

5. AMPS : 2A

6. Weight : 45kg

Application: This machine is suitable for flat surface printing in electronics,hardware,clothing,leather goods, shoes and otherindustries

Features:

1. This machine adopts all imported electrical and pneumatic parts, more stable and durable.

2. The machine is also fixed with the PLC, HMl, and PiD temperature module for accuratetemperaturecontrol, so the temperature difference is only around+1 degree centigradeThe machine automatically picks up and feeds the the trademark, so the production speed is fastandfeeding location will be accurate, tolerance is around ±0.1mm ;

3. The machine is fixed with imported color standard sensors, can accurately do 7 colorsdiscriminationand high precision positioning, entertainment diference within+0.02mm.

4. The machine with unique hot stamping function,when there is no material,the hot stamping diewill

5. stop hotstamping by itself.The machine is with Japanese stepping motor, so easily reach stable and reliable label rollingandlabel feeding job.

6. The machine adopts the principle that the motor runs in the reverse direction in unwinding,so that thetape is always tightened to reduce the entertainment difference duringstandard running
