Product Parameters:

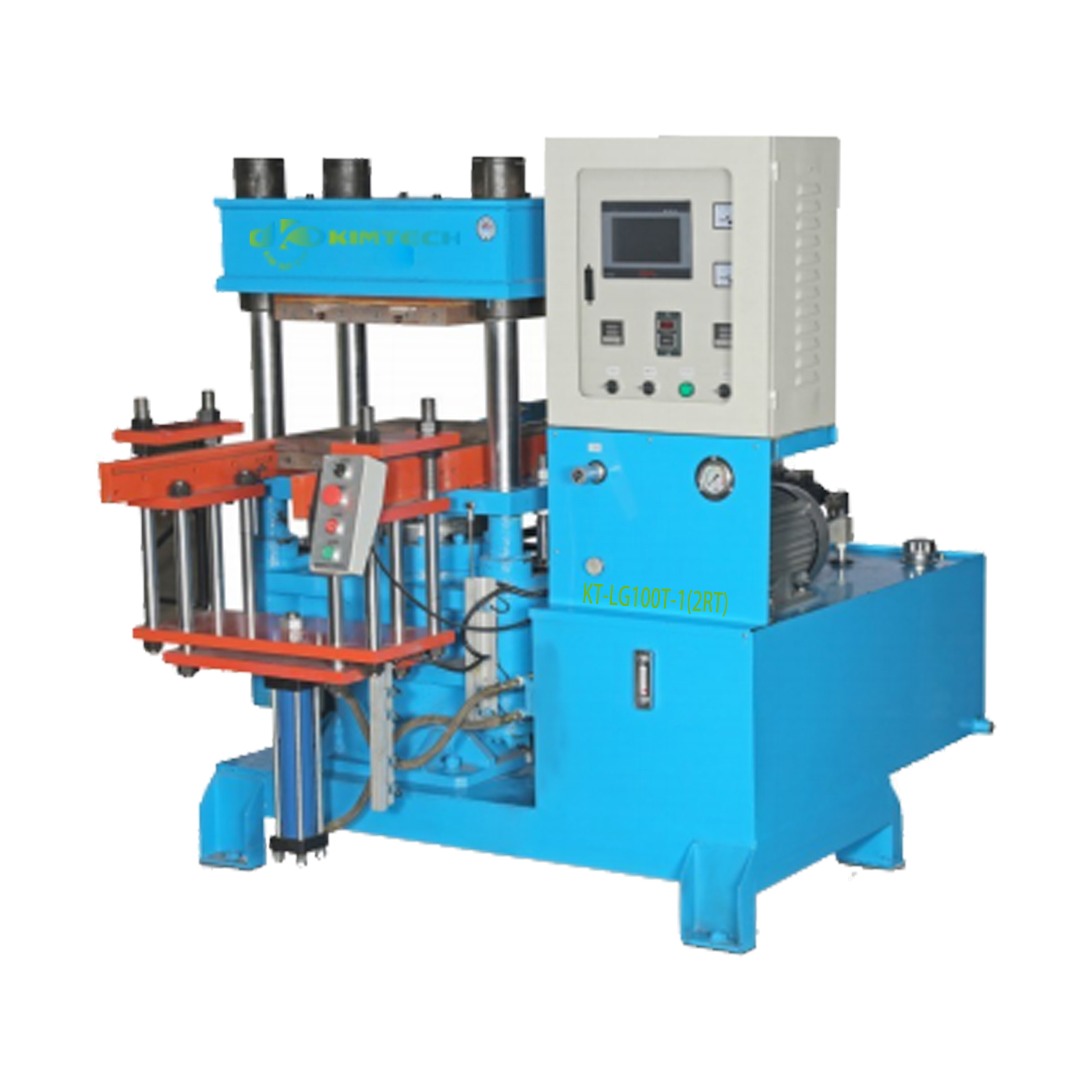

1.Model :KT-LG100T-1

2. Hot plate specifications: 450*450mm

3. Temperature range: normal temperature -350℃

4.Hot plate spacing: 250mm

5. Heating method: imported electric heating tube

6. Mold opening method: automatic mold release (2RT)

7. System pressure: 18MPa

8. Main column diameter: Φ250mm

9. Clamping stroke: 250mm

10. Working level: upper and lower levels

11. Motor power: 3.75KW

12. Maximum pressure: 100 tons

13.Total power: 14KW

14. Machine structure: four-column/single-head model

15. Power supply specification: 380V/50HZ

16. Overall machine size: 1800*1300*1650mm

17. Machine weight: 900Kg
