Product Parameters：

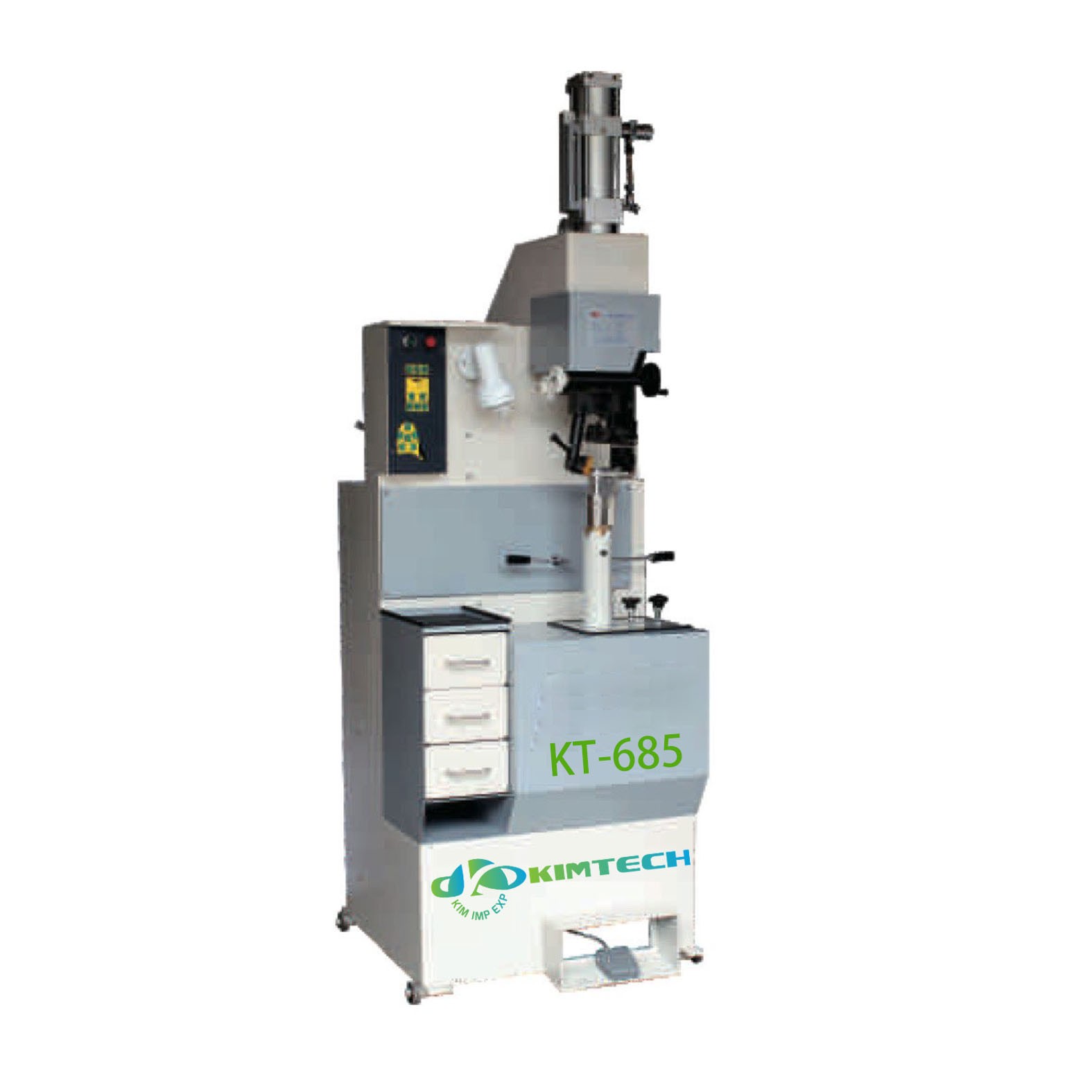

1. MODEL: KT- 685

2. Machine Size (LxWxH) ：L800xW720xH2000mm

3. Packing Size(LxWxH) ：L900xW850xH2100mm

4. G.W. ：450kg

5. N.W. ：415kg

6. Voltage ：220V/HZ

7. Power ：0.2KW

8. Production（8hours） ：2000pairs

9. air pressure ：0.6Mpa

 Features:

1. This machine is suitable for the nailingoperation of any men's and women's heels,universal indenter, no need to customize.

2. The gas and oil balance cylinders canautomatically adjust the heel against any height andkeep the heel from being damaged.

3.Suitable for nails and screws of any length.

4. Three nailing mode options, the heel will notsplit when nailing. And does not deform.

5.The angle of nailing can avoid penetrating theheel to achieve perfect product.

6.The order of nailing can be arbitrarily selectedin the time mode, and the effect is more perfect.

7. The nail feeding mechanism has a safety modeto avoid damage to the shoes and to ensure thesafety of the operator.
