Product Parameters：

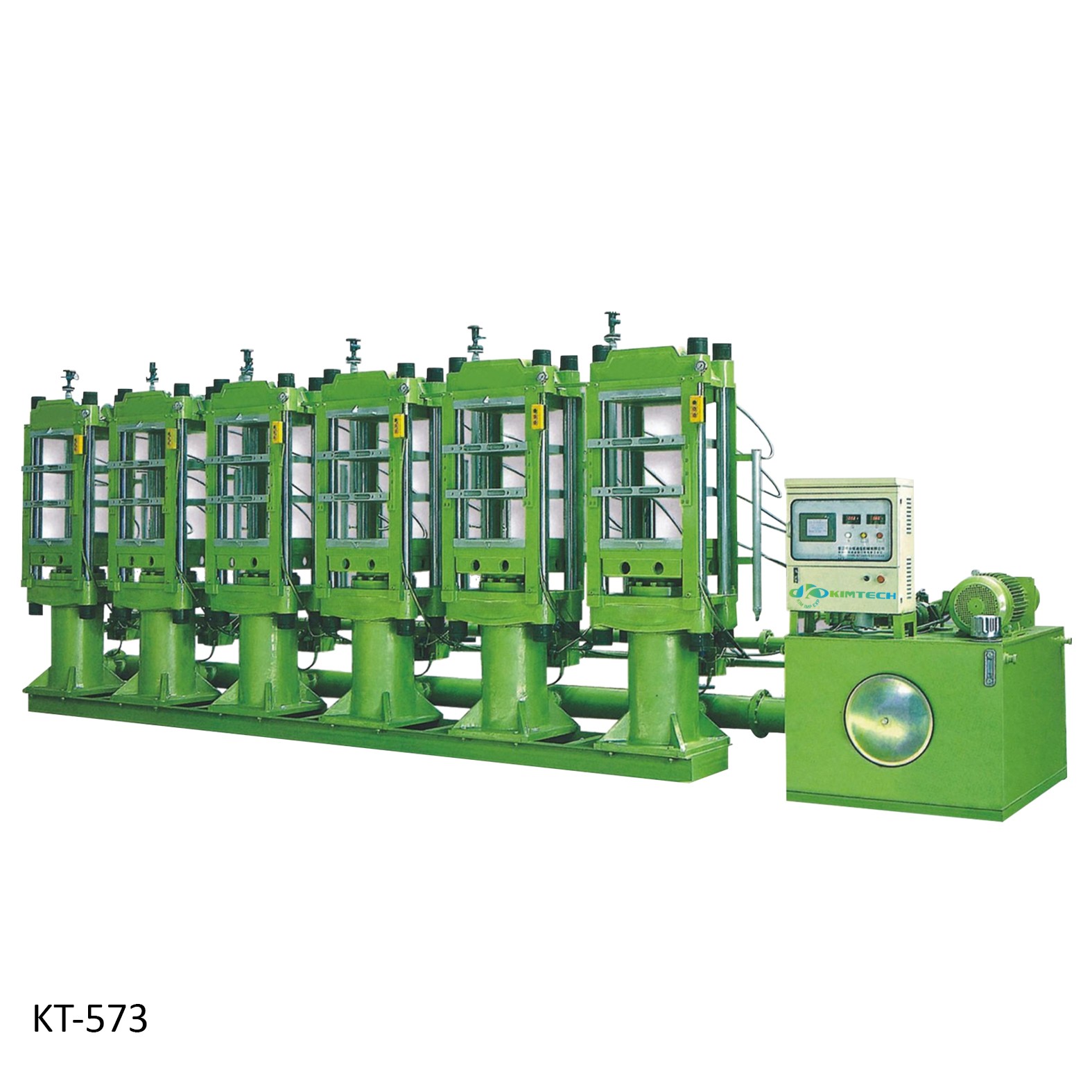

1. MODEL ：KT-573

2. Pressure(Tons) : 150

3. Layer number : 2/3

4. Number of work stations : 6

5. Size of plate(mm) : 550x550

6. Daylight between plate(mm) : 260

7. Maximu m stroke(mm) : 520

8. Working pressure(kg/cm2 ): 200

9. Power specification : 380V/50HZ

10. Motor specification(kw) : 15

11. Heating method : Oil/seam/electricty

12. Dimensions(LxWxH)m : 10x1.3x2.2

13. Weight(Tons) : 18

14. Total electricity(kw) : 16

Features:

1. Selection of PC and PLC control system, automatic control program, easy to operate.

2. Rising fast, long time to maintain the pressure, the pressure is automatically increased sulfur to ensure quality.

3. Special rapid drain valve, open mode drop speed express them freely adjusted.

4. The speed and relief after relief delay model, to follow the characteristics of the finished product and thickness to adiusttheir speed, suitablefor the development of new products and improve quality.

5.Special design hot plate, heat evenly.

6. Whether automatic or semi-automatic models have the above characteristics.

Suitable for:

PU or PVC foam board, sandals, rubber foam or other material foaming
