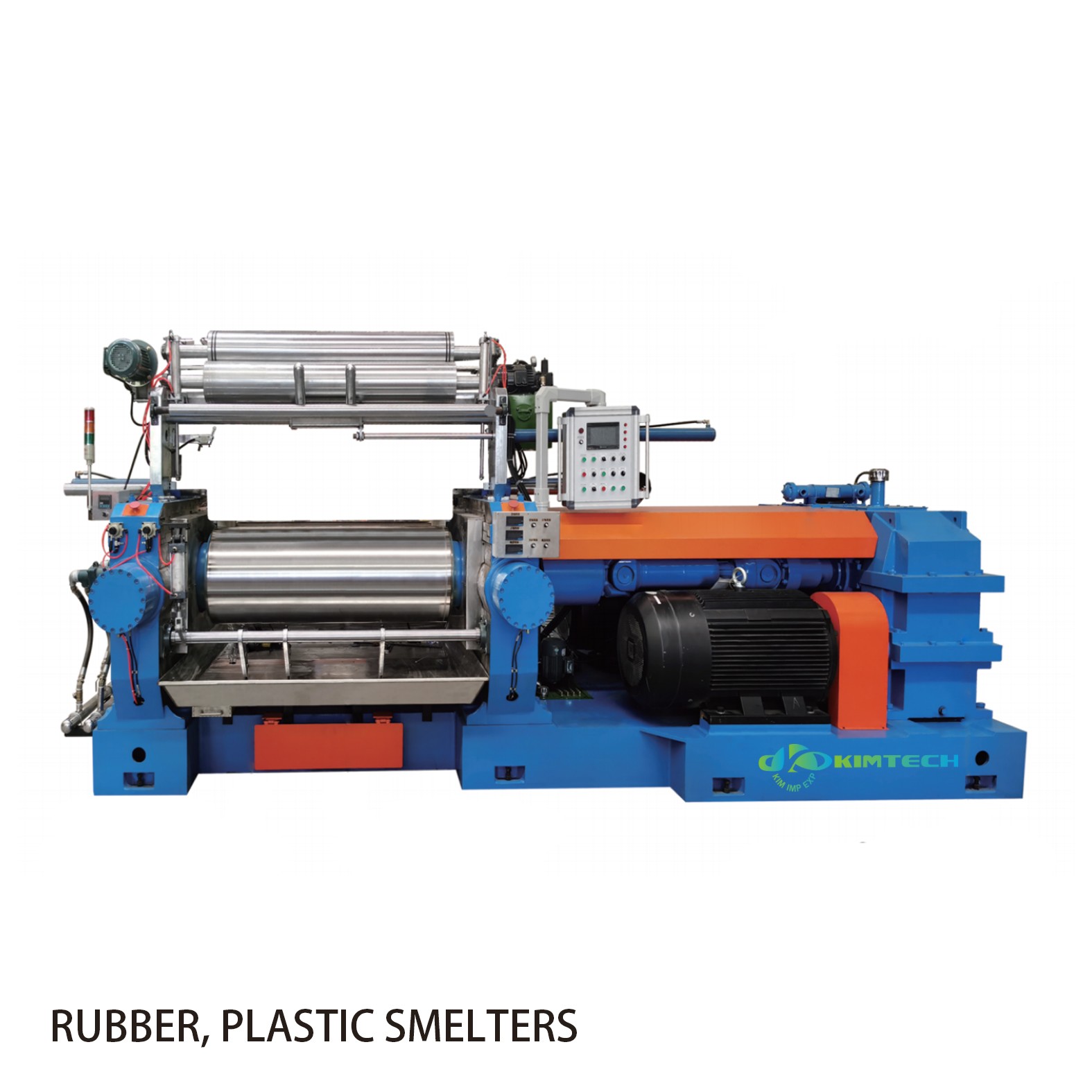

RUBBER PLASTIC SMELTERS

INQUIRY

Product Details

Product Tags

Product Parameters：

Model Specifications	１２寸	１６寸	１８寸	２２寸	２４寸
Roller diameter*Length	３１０×７５０	４０８×１０６７	４５８×１２１９	５６０×１５２４	６１０×１８３０
Front and rear rollerspeed ratio	Adjustable	Adjustable	Adjustable	Adjustable	Adjustable
One S hot	１５－２０ＫＧ	２５－３５ＫＧ	３０－５０ＫＧ	５０－６０ＫＧ	１２０－１３０ＫＧ
Mechanical weight	６２００ＫＫＧ	１０３００ＫＧ	１３７００ＫＧ	１８７００ＫＧ	２７５００ＫＧ
I nstallation Size	３３５０＊１６３０＊１６５００ｍｍ	４３５０＊２０２０＊２１００ｍｍ	４７００＊２０５０＊２５００ｍｍ	５８００＊２３００＊２５００	６３４０＊２５５０＊２９５０ｍｍ

Double permanent magnet motor with automatic glue turnover hydraulic adjustment advantage:

1. Save Energy and electricity, reduce resource consumption and cost (10% ~ 20% comparedwith ordinary motor);

2. According to the production process to change the speed of single drum, mixing better

materials, out of a smooth surface;

3. The thickness of the material (0.05 ~ 20mm) can be adjusted at any time according to thedemand under the condition of hydraulic gauge adjustment, the gauge adjustment speed isfast, the working rate of the equipment is improved, and the economic benefit is improved

4. Optional Drilling Roller, cooling effect is very good

5.Quick disassembly baffle for easy disassembly and cleaning
