Product Parameters:

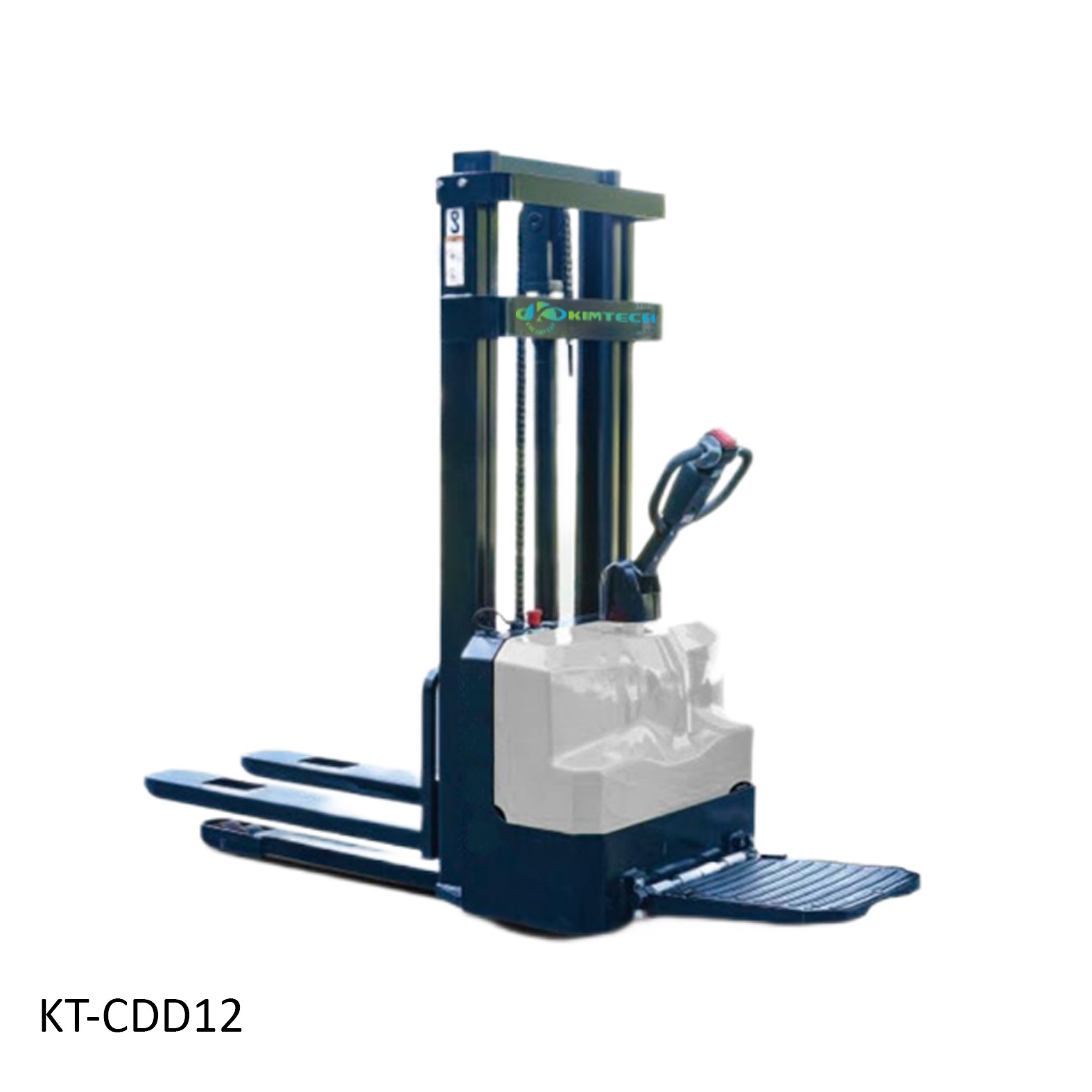

1. MODEL :KT-CDD12
2. Capacity :1200kg
3. LoadCenter : 600mm
4. Wheelbase : 1188mm
5. Material of Wheel : Polyurethane
6. Total Weight :635kg
7. Front wheel : Φ80*64
8. Drive wheel : Φ210*70
9. Training wheels :Φ80*64
10. No. of Wheel : lx+1/4
11. Max. Fork Height : 2500mm
12. Length of Fork : 1150mm
13. Width of Fork :170mm
14. Overall Length : 1784mm
15. Overall Width : 800mm
16. Minimum height : 85mm
17. Min.right-angle stack channel width : 2007mm
18. Minimum intersecting aisie : 1455mm
19. Minimum turning radius : 26mm
20. Lift Speed :110 mm/s
21. Descent Speed : 120mm/s
22. DriveSpeed : 4.2km/h
23. Maximum climbing force : 6/10%
24. Lift Motor : 2.2kw
25. Drive motor power : 0.65kw
26. Battery Voltage : 24V/60AH
27. Electronic control type : DC
1. MODEL :KT-CDD15
2. Capacity :1500kg
3. LoadCenter : 600mm
4. Wheelbase : 1188mm
5. Material of Wheel : Polyurethane
6. Total Weight :650kg
7. Front wheel : Φ80*64
8. Drive wheel : Φ210*70
9. Training wheels :Φ80*64
10. No. of Wheel : lx+1/4
11. Max. Fork Height : 2500mm
12. Length of Fork : 1150mm
13. Width of Fork :170mm
14. Overall Length : 1784mm
15. Overall Width : 800mm
16. Minimum height : 85mm
17. Min.right-angle stack channel width : 2007mm
18. Minimum intersecting aisie : 1455mm
19. Minimum turning radius : 26mm
20. Lift Speed :110 mm/s
21. Descent Speed : 120mm/s
22. DriveSpeed : 4.2km/h
23. Maximum climbing force : 6/10%
24. Lift Motor : 2.2kw
25. Drive motor power : 0.65kw
26. Battery Voltage : 24V/60AH
27. Electronic control type : DC
