Features:

1. Extra long feeding opening -750MM, convenient for discharging materials without crowding.

2. Extra-long heating zone - 1800MM. The long heating zone allows the material to be fully heated, the temperature is uniform, and the material fit is better.

3. Use thickened silicone rollers to achieve uniform and balanced pressure, improving adhesion and durability.

4. Extra long cooling zone - 1500MM. The extended cooling zone allows the material to be fully cooled. The material will not be easily deformed when it comes out, and it will be easier to break away from the belt and not stick to the belt. Improved belt life cycle.

5. Discharge port: (1) The discharge port can be divided into left and right parts, and the left and right feet can be bonded at the same time without mixing the materials. (2) The discharging conveyor belt can be adjusted to transport materials forward and reverse. It can collect materials unilaterally at the same time, or separately from left to right. It can also stop the conveyor belt operation unilaterally.

6. This machine uses a variable frequency motor, three-stage temperature control (front, back, and bottom), solid-state heating, fast temperature control response, and stable speed.

Product Parameters：

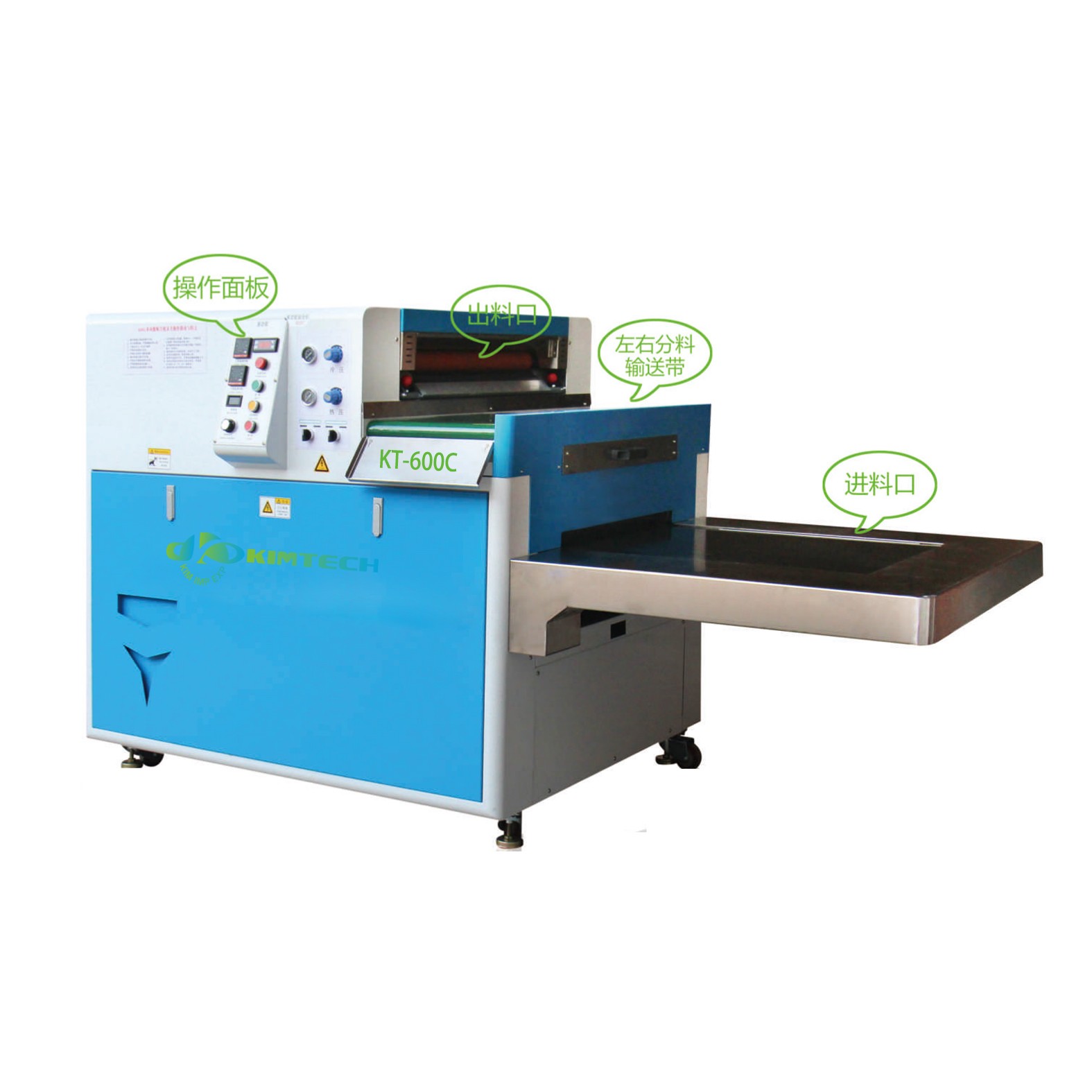

1.Model:KT-600C

2.Power supply:220V／380V

3.Pated output:9.6KW

4.Motor power:180W

5.Belt speed（max）:10.2m/min

6.Pressure （max）:0-0.6MPa

7.Temperature（max）:200℃

8.Heating time:1-5min

9.Dimension:2050*1200*1300mm

10.Ice machine:3P

11.Weight：400kg
