Product Parameters:
MODEL |

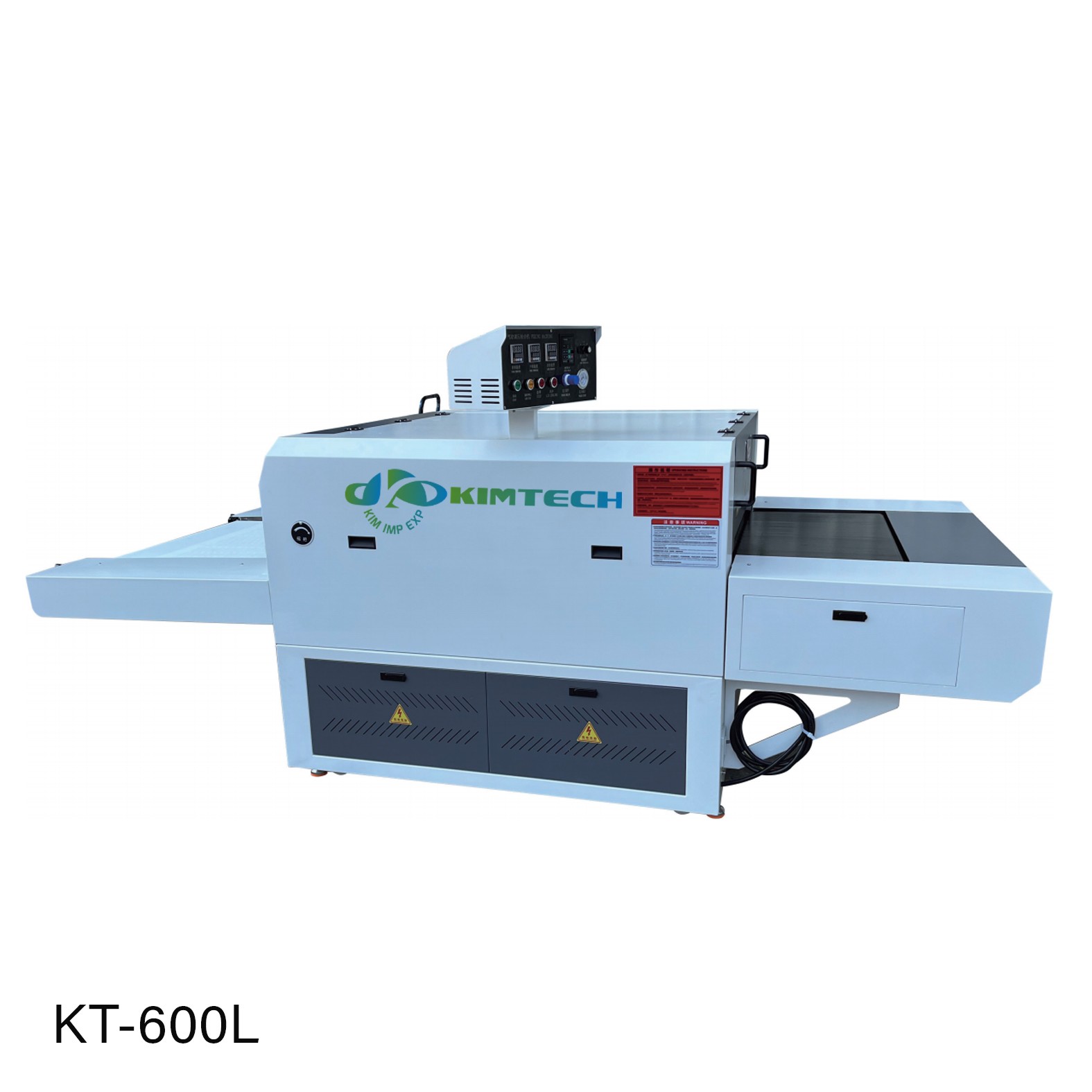

KT-600L |
KT-900L |
KT-1200L |
Rated voltage frequency |
380V 50HZ |
380V 50HZ |
380V 50HZ |
Heating power |
13.5KW |
18KW |
22.5KW |
Pressurization method |
Cylinder pressurization |
||
Rubber roller diameter |
160mm |
||
Bonding temperature |
room temperature -230℃ |
||
Heating zone material |
Nickel-chromium wire mica sheet 5mm thickaluminum profile |
||
Heating zone size/mm |
1500*600 |
1500*900 |
1500*1200 |
Maximum use width/mm |
600 |
900 |
1200 |
Conveyor belt adjustment method |
Motor lead screw fully automatic |
||
Bonding speed |
2-12m/min |
||
Conveyor belt |
anti-static seamless belt |
||
Speed control system |
Variable frequency drive Variable frequencymotor |
||
Internal structure |
Straight-line circular tape drive |
||
Installation size/mm |
L3300 W1200 H1550 |
L3300 W1500 H1550 |
L3300 W1800 H1550 |
Wooden box size/mm |
L1500 W1200 H1650 |
L1500 W1500 H1650 |
L1800 W1500 H1650 |
MODEL |
KT-1600L |
KT-1800L |
Rated voltage frequency |
380V 50HZ |
380V 50HZ |
Heating power |
27KW |
31.5KW |
Pressurization method |
Cylinder pressurization |
|
Rubber roller diameter |
160mm |
|
Bonding temperature |
room temperature -230℃ |
|
Heating zone material |
Nickel-chromium wire mica sheet 5mm thickaluminum profile |
|
Heating zone size/mm |
1500*1600 |
1500*1800 |
Maximum use width/mm |
1600 |
1800 |
Conveyor belt adjustment method |
Motor lead screw fully automatic |
|
Bonding speed |
2-12m/min |
|
Conveyor belt |
anti-static seamless belt |
|
Speed control system |
Variable frequency drive Variable frequencymotor |
|
Internal structure |
Straight-line circular tape drive |
|
Installation size/mm |
L3300 W2200 H1550 |
L3300 W2400 H1550 |
Wooden box size/mm |
L2200 W1500 H1650 |
L2400 W1500 H1650 |
Applicable Industries
Seamless underwear lamination, seamlessshirts, POLO shirt lamination, high-end down jacketchannelamination, high-end shirt and suit interlining, wholefabric lamination, automobile trim lamination, and othercomplex processes.
Configuration
1.16mm diameter high-temperature silicone rubber roller.
2.76mm diameter chrome.plated roller.
3.9 pieces of 5mm thick aluminumusion withsurface hardening, equipped with mica heating plate. 4.Imported inverter for speed control. 5.lmported temperaturecontroller.
Features
1. machine uses a 160mm diameter high.temperature silicone rubber roller, combined with an 80mmdiameter air cylinder for pressure, providing over 0kg ofpressure per square centimeter, capable of handling variousdifficult-to-bond materials.
2. All rollers are treated with a 76mmdiameter chrome-plated surface, enhancing the flatness of thehigh-temperature belt, and solving the problem of thin materialwrinkling.
3. The 5mm thick aluminumusion is treated withsurface hardening,increasing the wear resistance of thealuminum heat conduction plate. The mica heating plateensures uniform heat conduction, minimizing temperaturedifferences, and providing fast heating speeds.
4. The thickenedmachine body wall is welded to the base, preventingdeformation, and making it more durable.
5. The motor isequipped with our company's patented bias correctionstructure,ensuring stable belt tracking.
6. lmported temperaturecontrol components and imported inverter speed controllersprecise temperature control and stable speed regulation.
7. Thethickened top cover (8cm) and side cover (3cm) insulation layershelp retain heat, power consumption, and improve the
workshop environmentaltemperature.
