Product Parameters：

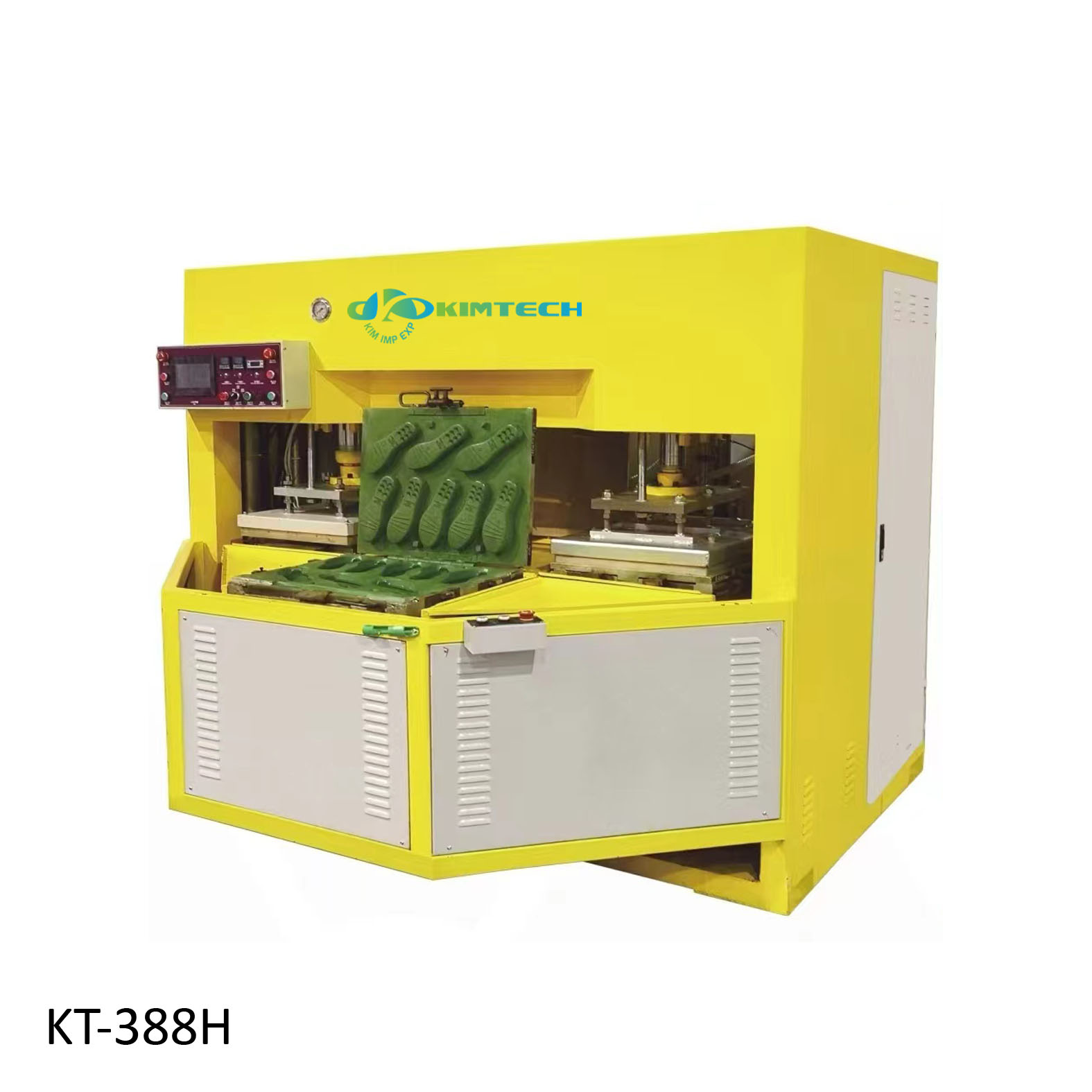

1. MODEL ：KT-388H

2. Working area ：700x520mm

3. Voltage ：380v/220v

4. Pressure ：40T

5. Power ：38kw

6. Refrigerator :10hp

7. Temperature range ：0-280℃

8. Time Range ：any arbitrary  According to demand

9. Weight ：3500kg

10. Dimensions ：2300x2330x2250mm

11.  Others ：Automatic frequency conversion, highly stable Plc circuit design,long service life.

Features:

1. The machine adpots hydraulic pressure system, anduses cooling-after-heating forming method. The designof four rotatory working platform extremely improves thework efficiency. Being cooled rapidly after being heated,the shoe soles could be formed more rapidly, especiallysuitable for second-time-pressing forming EVA shoesoles,which can't be done by the tradicional machines.
