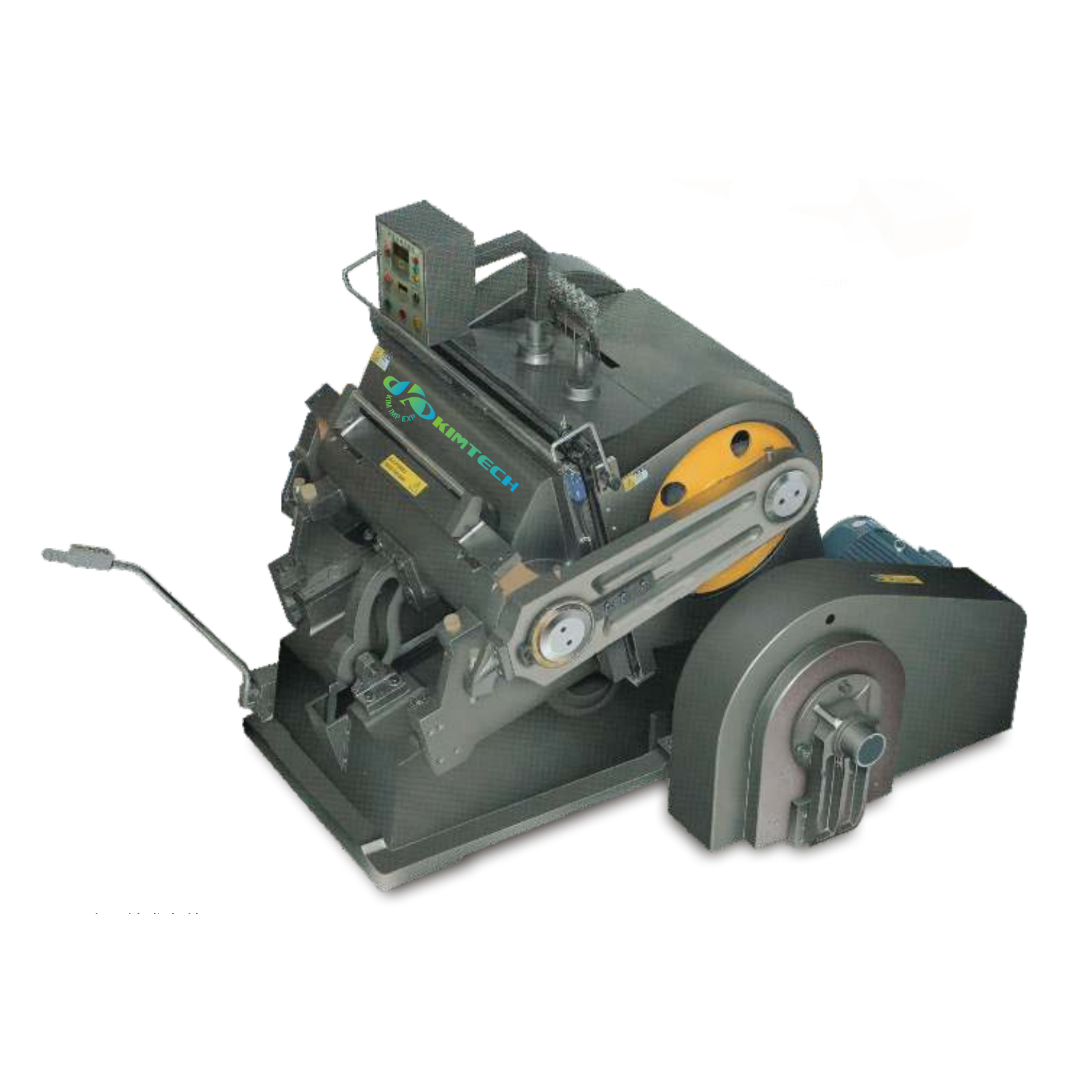

Creasing and cutting machine

INQUIRY

Product Details

Product Tags

Model	Inner Chase Size	Max. Rule Length	Speed Strokes/Min	Motor Powe	Machine Weight	Overall Dimensions
ML750E	750x520mm	<18m	25±3	2.2kw-6H	2000kg	1300x1500x1600mm
PYQ203E	930x670mm	<30m	23±2	4kw-6H	3500kg	1800 x2100 x1750mm
ML1100E	1080x720mm	<38m	22±2	4kw-6H	4700kg	1950x2100x1750mm
ML1200E	1200x820mm	<38m	22±2	4kw-6H	5000kg	2000x2100 x1800mm
ML1300E	1300x920mm	<42m	15±2	5.5kw-6H	6500kg	2350x2100x1900mm
ML1400E	1400x1000mm	<45m	15±2	5.5kw-6H	7000kg	2450x2100x2000mm
ML1500E	1500x1040mm	<48m	15±2	5.5kw-6H	7700kg	2550x2100x2100mm

Features:

1. Sliding bearings are made of high quality alloy cooper, thus to get effectof anti-frietion and shake reducing.

2. Flywheel is wrth big moment of force and large pressure.

3. High strength due to one piece casting by using top-ranking material formachine body.

4. High strength duo to integral casting wrth high quality steel.

5. Single plate electromagnetic dutch is sensitive and reliable safety.

6. Single pressing, continuous pressing, adjustable delay pressing available.

7. Operational height is reasonable arranged. The opening angle of movingbed is optimum.

8. Reliable performance of safety protection system.

9. inner and outer movable frame can be fitted, automatic oil pumpmatching.

USE：

Creasing and Cutting Machine is a special equipment for creasing andcutting ordinary cardboard corrugated board plastic and leatheringeneral,applicable to printing packaging decoration and plastic in dustries.Machineis characterized bycompact strrctute, fine workmanship, bigpressure,high precision and easy and reliable operation, etc.
