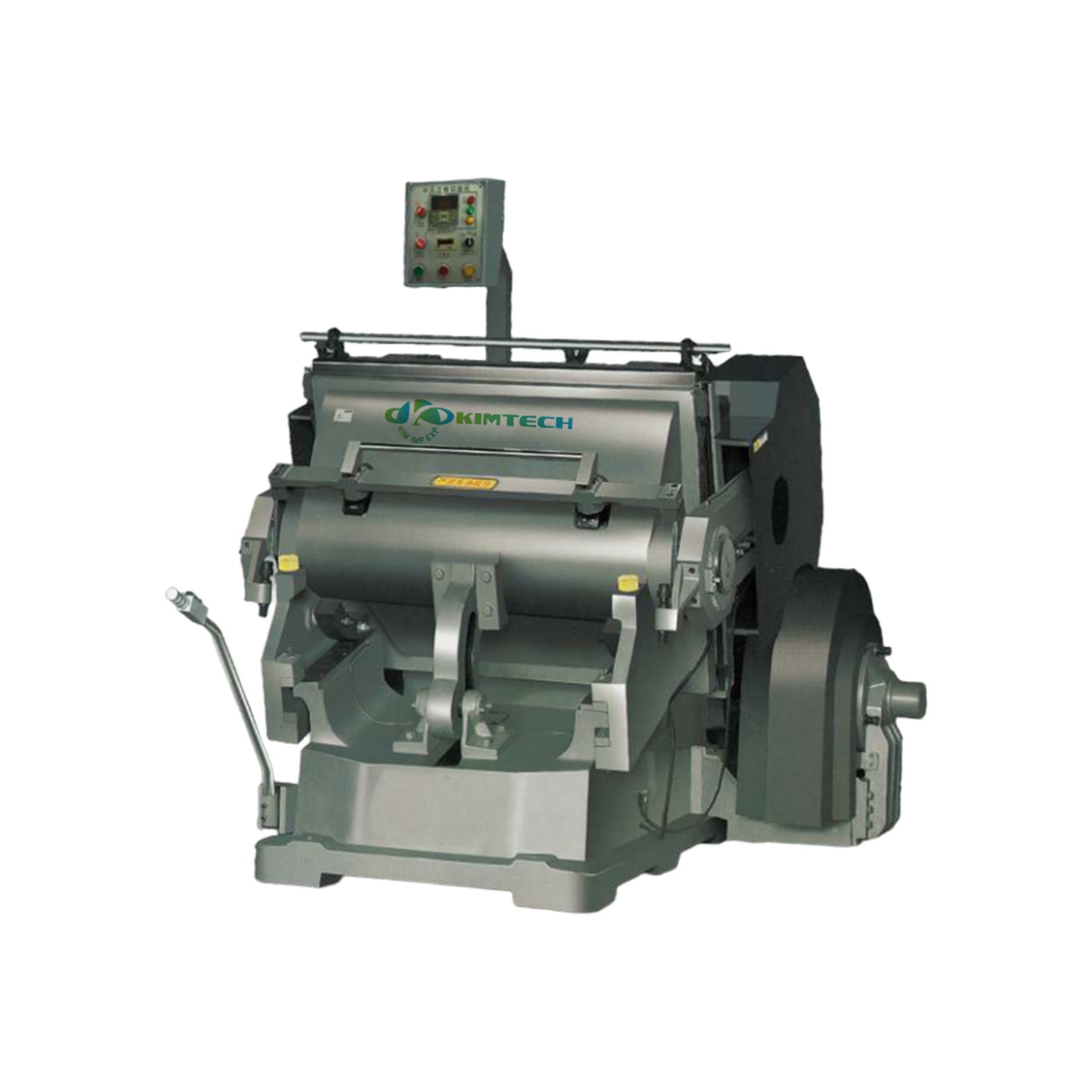

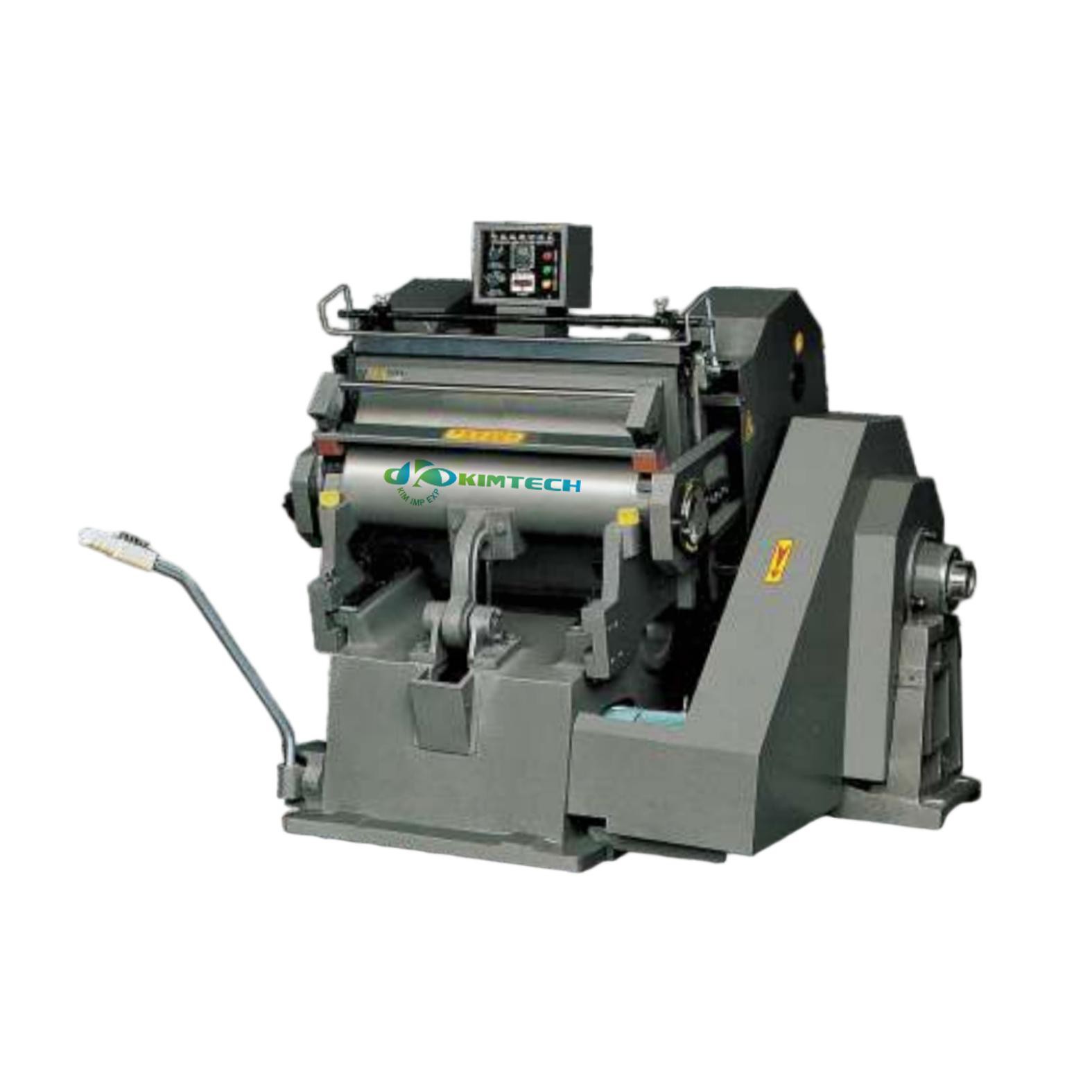

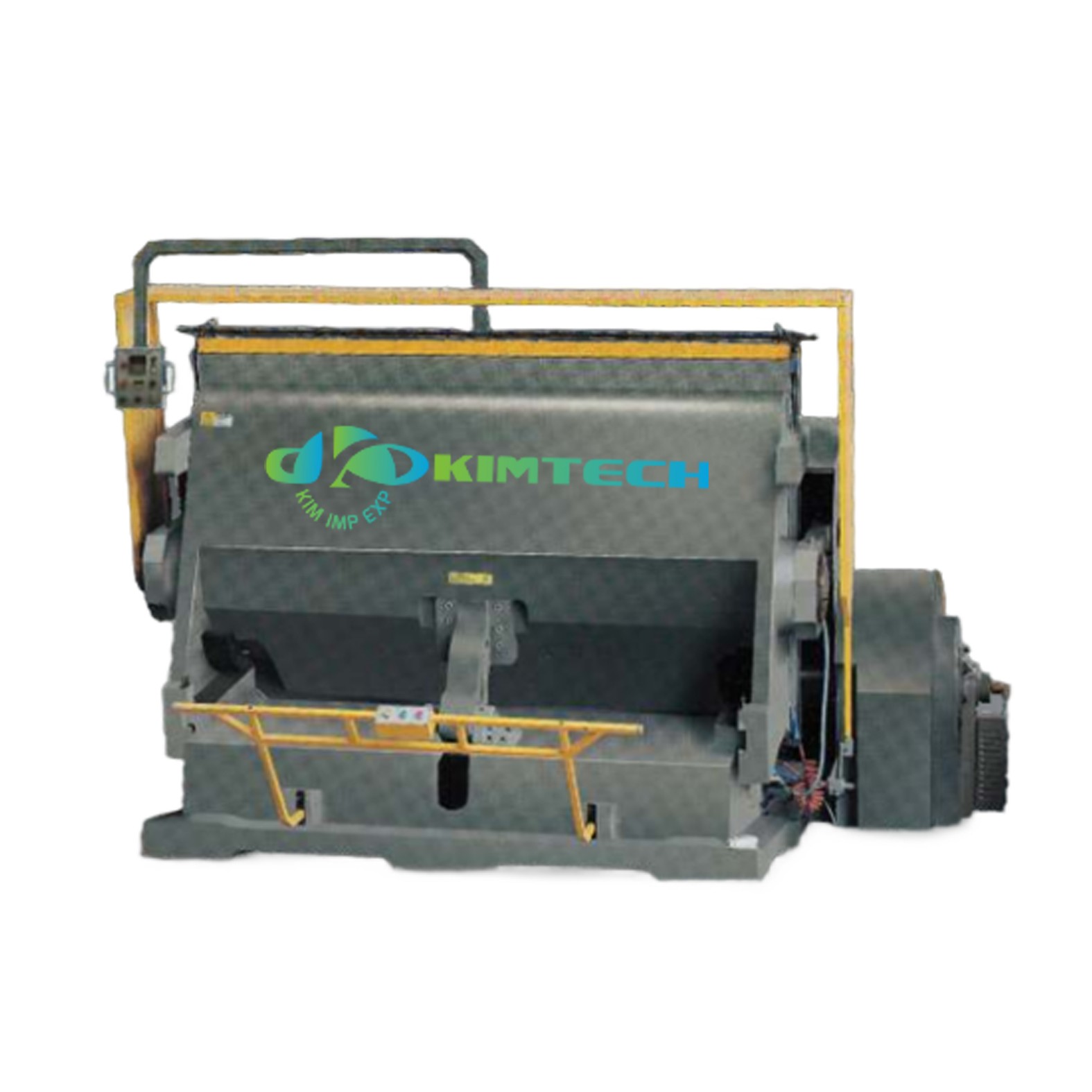

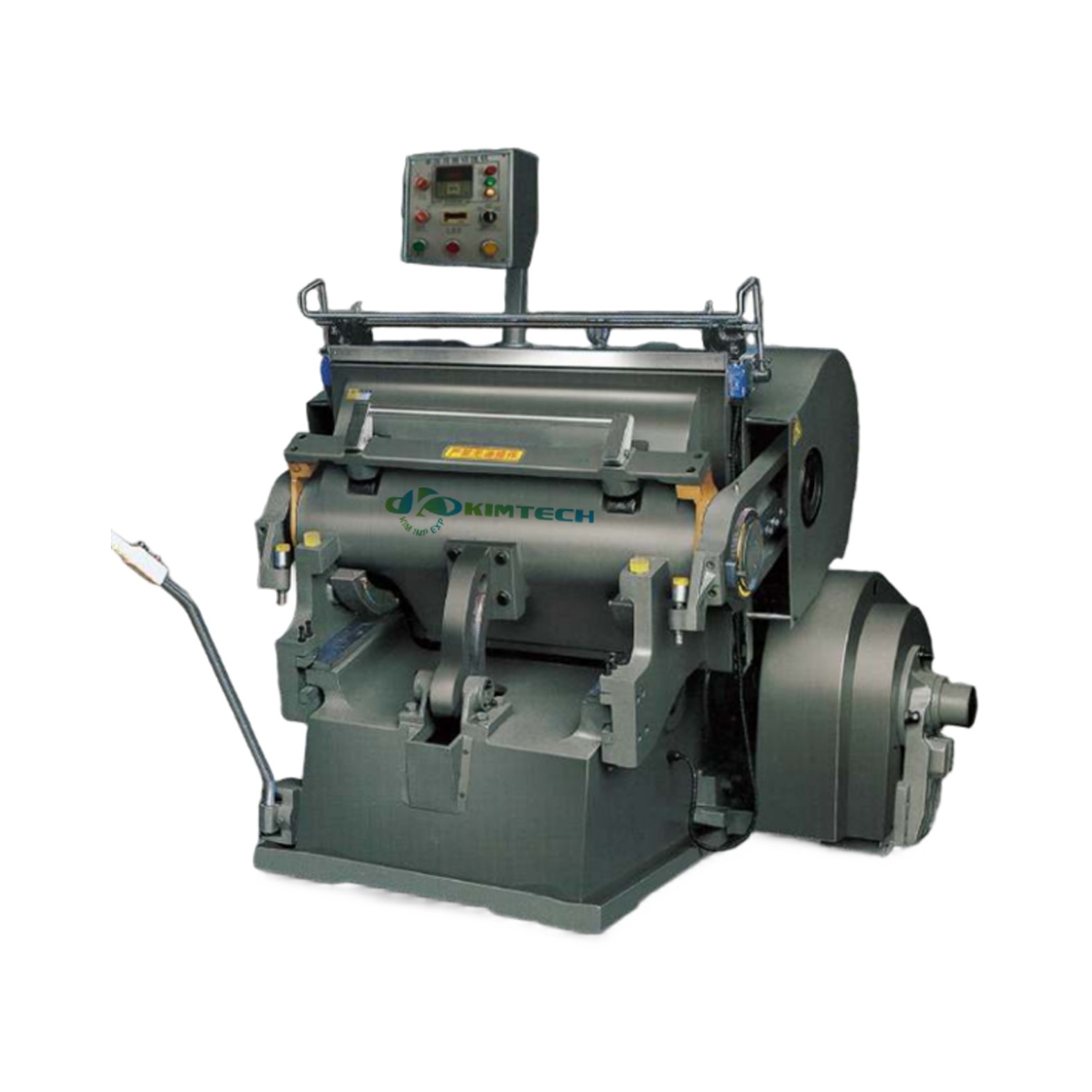

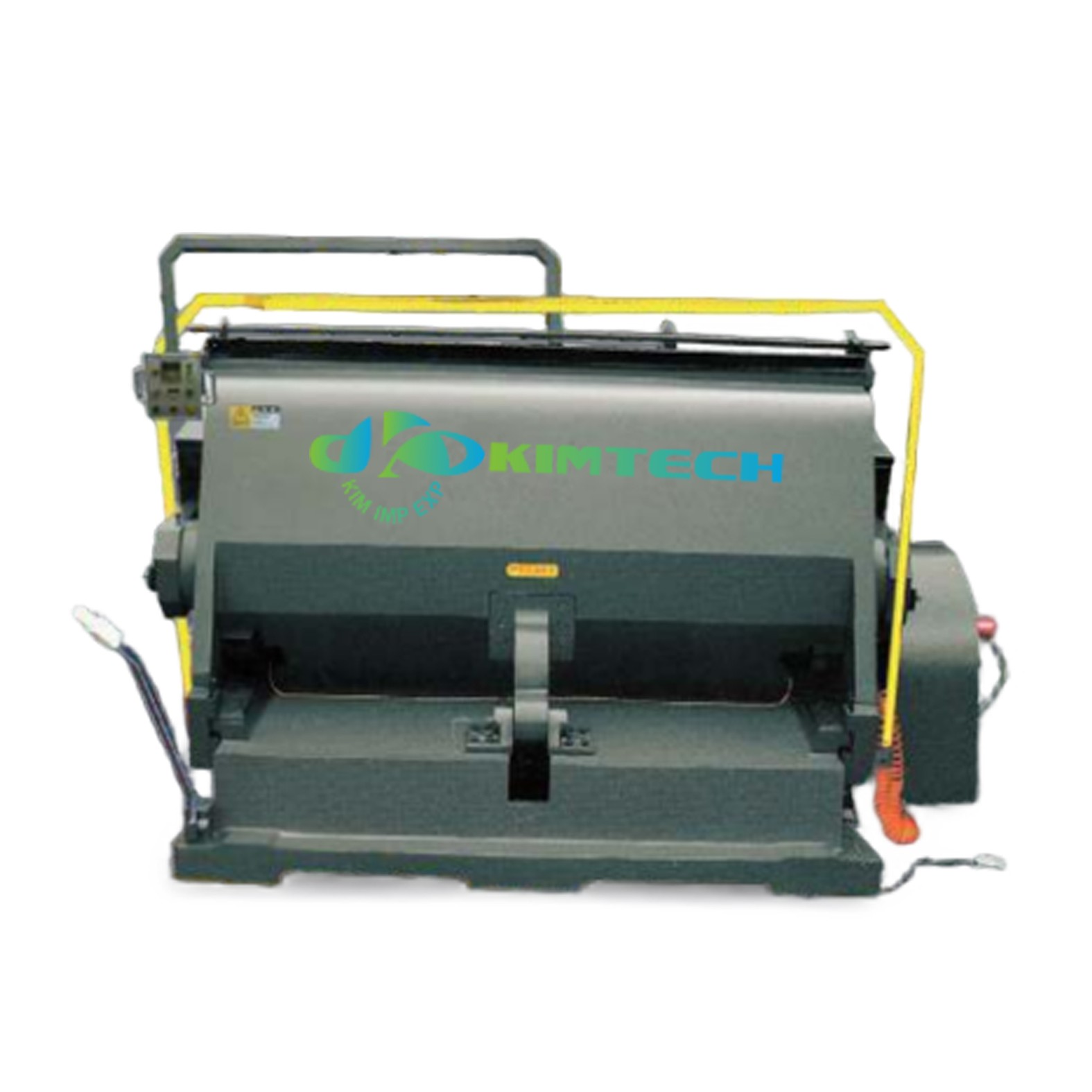

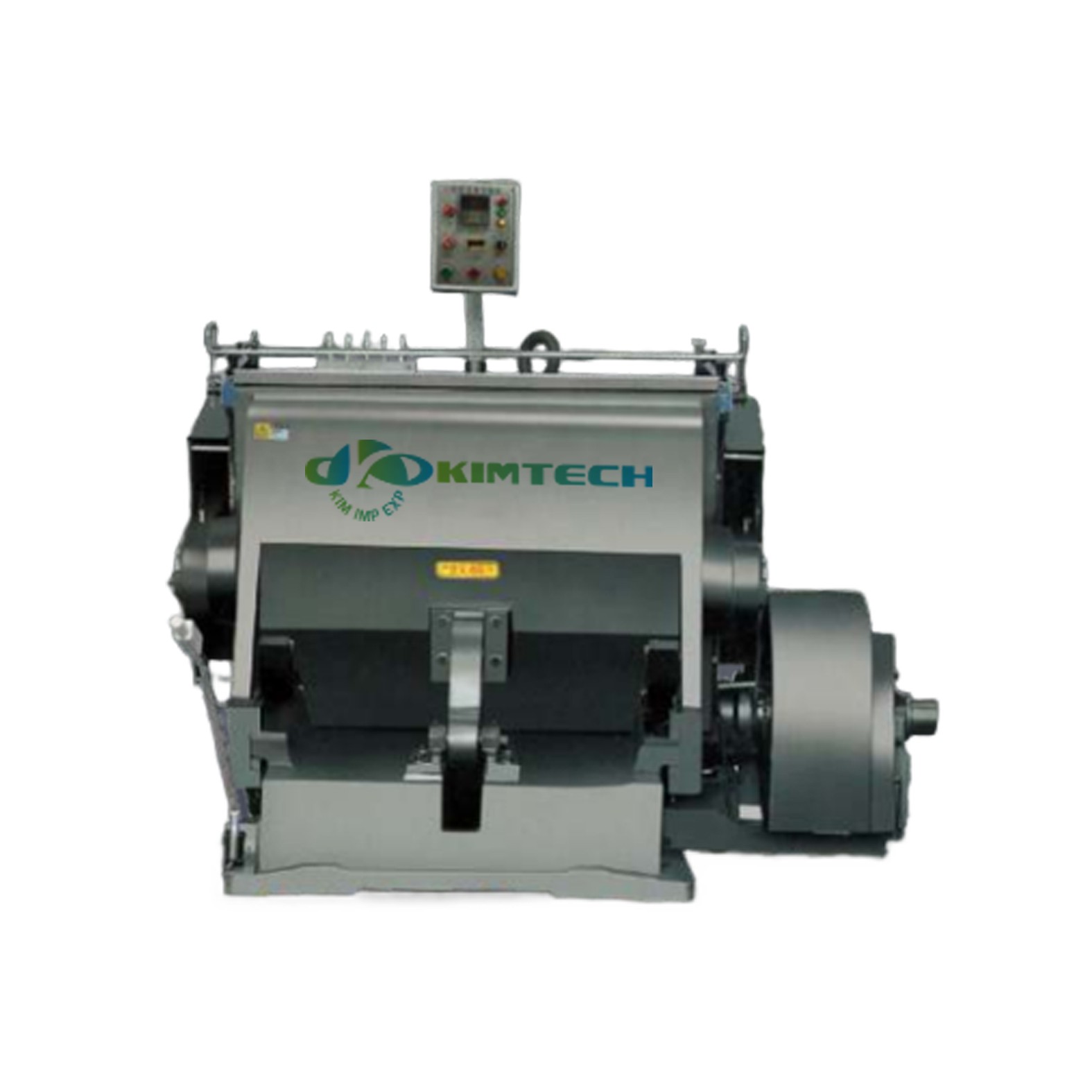

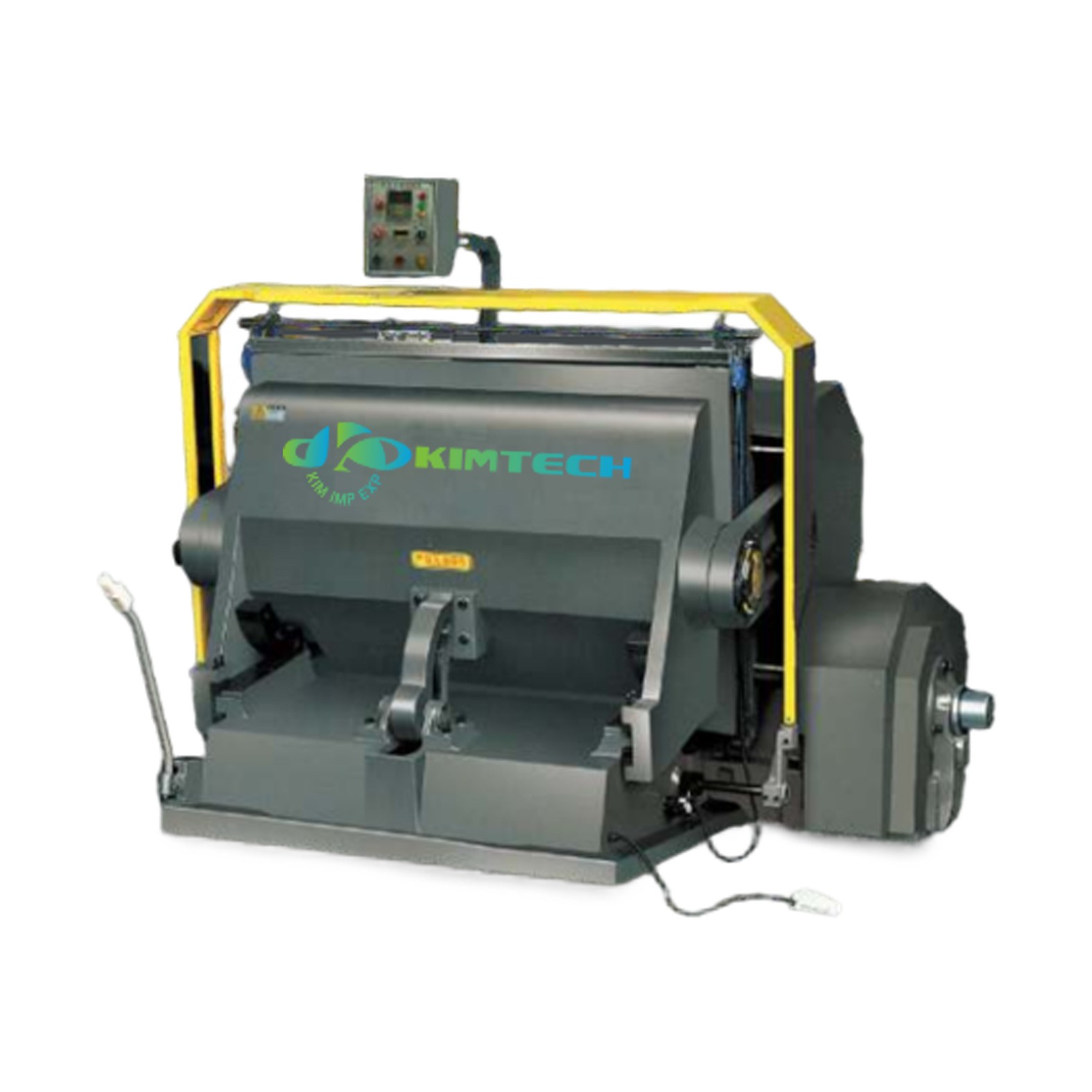

Creasing and cutting machine-1100The type 1100 compound series

INQUIRY

Product Details

Product Tags

Model	Inner Chase Size	Max. Rule Length	Speed Strokes/Min	Motor Powe	Machine Weight	Overall Dimensions
ML3000	3000x1600mm	<90m	11±3	30kw-6H	26000kg	4200x2400x2580mm
ML2800	2800x1600mm	<85m	11±3	30kw-6H	24000kg	4000 x2400 x2580mm
ML2500	2500x1600mm	<80m	11±3	22kw-6H	22000kg	3680x2400x2580mm
ML2500B	2200x1500mm	<75m	13±2	22kw-6H	20000kg	3680x2400 x2580mm
ML2200	2200x1400mm	<70m	13±2	15kw-6H	18000kg	3380x2400x2580mm
ML2000	2000x1400mm	<65m	13±2	15kw-6H	16000kg	3180x2400x2580mm
ML1800	1800x1300mm	<60m	13±2	11kw-6H	14000kg	2980x2300x2500mm
ML1600	1600x1250mm	<50m	13±2	11kw-6H	12000kg	2780x2300x2400mm
ML1500B	1500x1140mm	<48m	14±2	7.5kw-6H	7600kg	2550x2100x1900mm
ML1500	1500x1040mm	<48m	15±2	5.5kw-6H	7500kg	2550x2100x1800mm
ML1400	1400x1000mm	<45m	15±2	5.5kw-6H	6800kg	2450 x2100 x1800mm
ML1300	1300 x920mm	<40m	15±2	5.5kw-6H	6200kg	2350 x2100 x1700mm
ML1200	1200x820mm	<35m	20±2	4kw-6H	4800kg	2000x2100x1750mm
ML1100	1100x800mm	<35m	20±2	4kw-6H	4500kg	1950 x2100 x1750mm
ML1040	1040x720mm	<30m	20±2	4kw-4H	3500kg	1750x2000 x1650mm
PYQ203C	930x670mm	<25m	23±2	4kw-4H	3000kg	1650x1850x1650mm
ML750	750x520mm	<15m	26±2	2.2kw-6H	2000kg	1350 x1500 x1600mm

Features:

1. Sliding bearings are made of high quality alloy cooper, thus to get effectof anti-frietion and shake reducing.

2. Flywheel is wrth big moment of force and large pressure.

3. High strength due to one piece casting by using top-ranking material formachine body.

4. High strength duo to integral casting wrth high quality steel.

5. Single plate electromagnetic dutch is sensitive and reliable safety.

6. Single pressing, continuous pressing, adjustable delay pressing available.

7. Operational height is reasonable arranged. The opening angle of movingbed is optimum.

8. Reliable performance of safety protection system.

9. inner and outer movable frame can be fitted, automatic oil pumpmatching.

USE：

Creasing and Cutting Machine is a special equipment for creasing andcutting ordinary cardboard corrugated board plastic and leatheringeneral,applicable to printing packaging decoration and plastic in dustries.Machineis characterized bycompact strrctute, fine workmanship, bigpressure,high precision and easy and reliable operation, etc.
