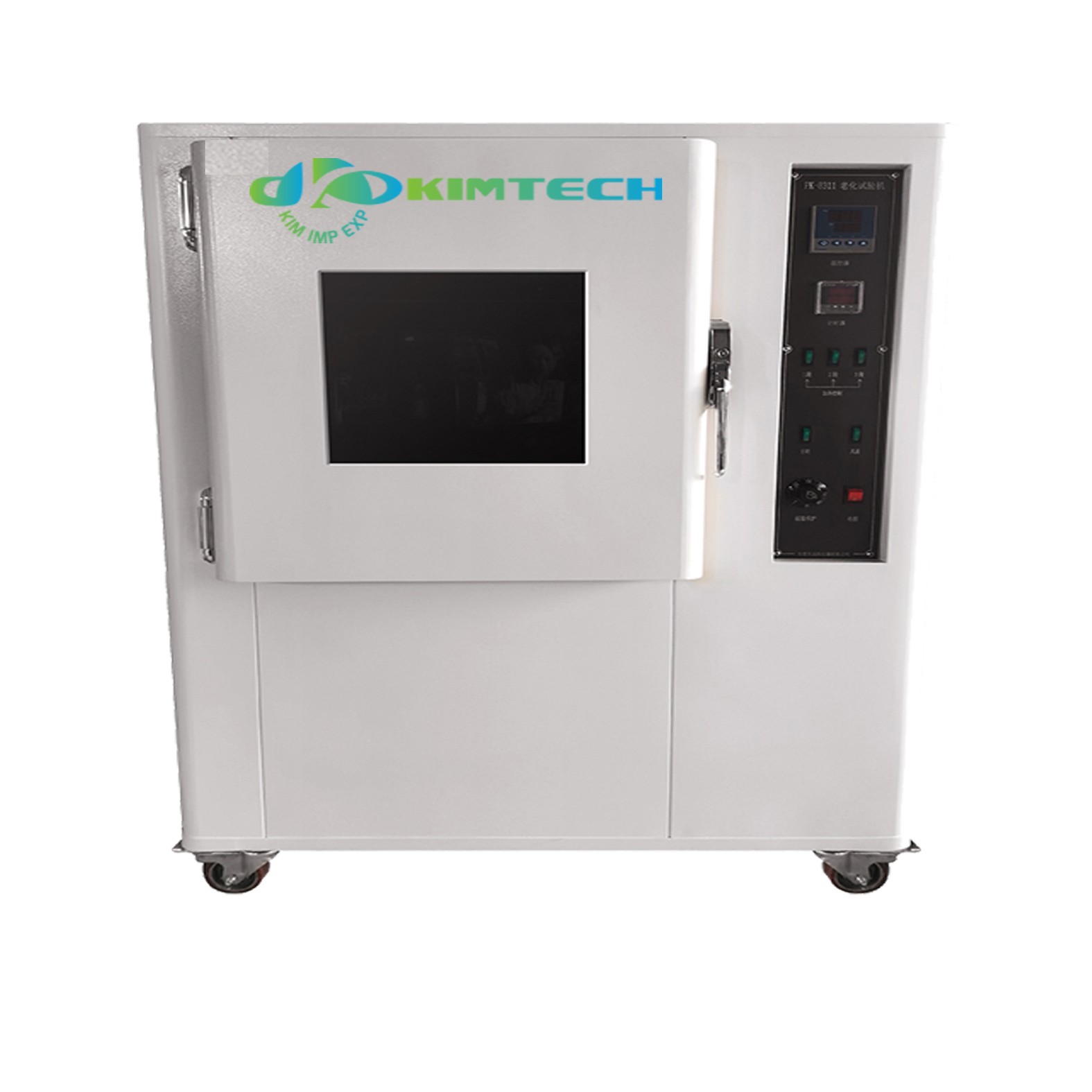

The aging tester is used to promote the deterioration of vulcanized rubber and plastic. To calculate the rate of change of tension and elongation before and after heating. Main reference standards: GB/T 7141, ASTM D3045, JIS K 6257, GB/T20028 vulcanized rubber or thermoplastic rubber, use Arrhenius diagram to calculate life and maximum service temperature.

Main application scope: heat-resistant aging test of various products, such as PCB boards, insulating rubber in electrical appliances, products with long-life requirements (such as outer covering for cable-stayed bridges, which have a service life of more than 20 years), etc. Over time, product performance changes, and the reliability of product use is examined.

Product Parameters:

1. Temperature control range: RT+10～200℃

2. Temperature fluctuation: ±1℃

3. Input power: 2200W

4. Volume: 150L

5. Studio size: 500×500×600mm

6. Dimensions: 930×570×1350mm

7. Load carrier: 2 pieces

8. Timing range: 9999 hours 59 minutes 59 seconds

9. Power supply voltage: AC～220V / 50Hz
